Inspection Process For Diagnostic Trouble Codes
>>
P1723: A/T Control Relay System
P1723: A/T Control Relay System

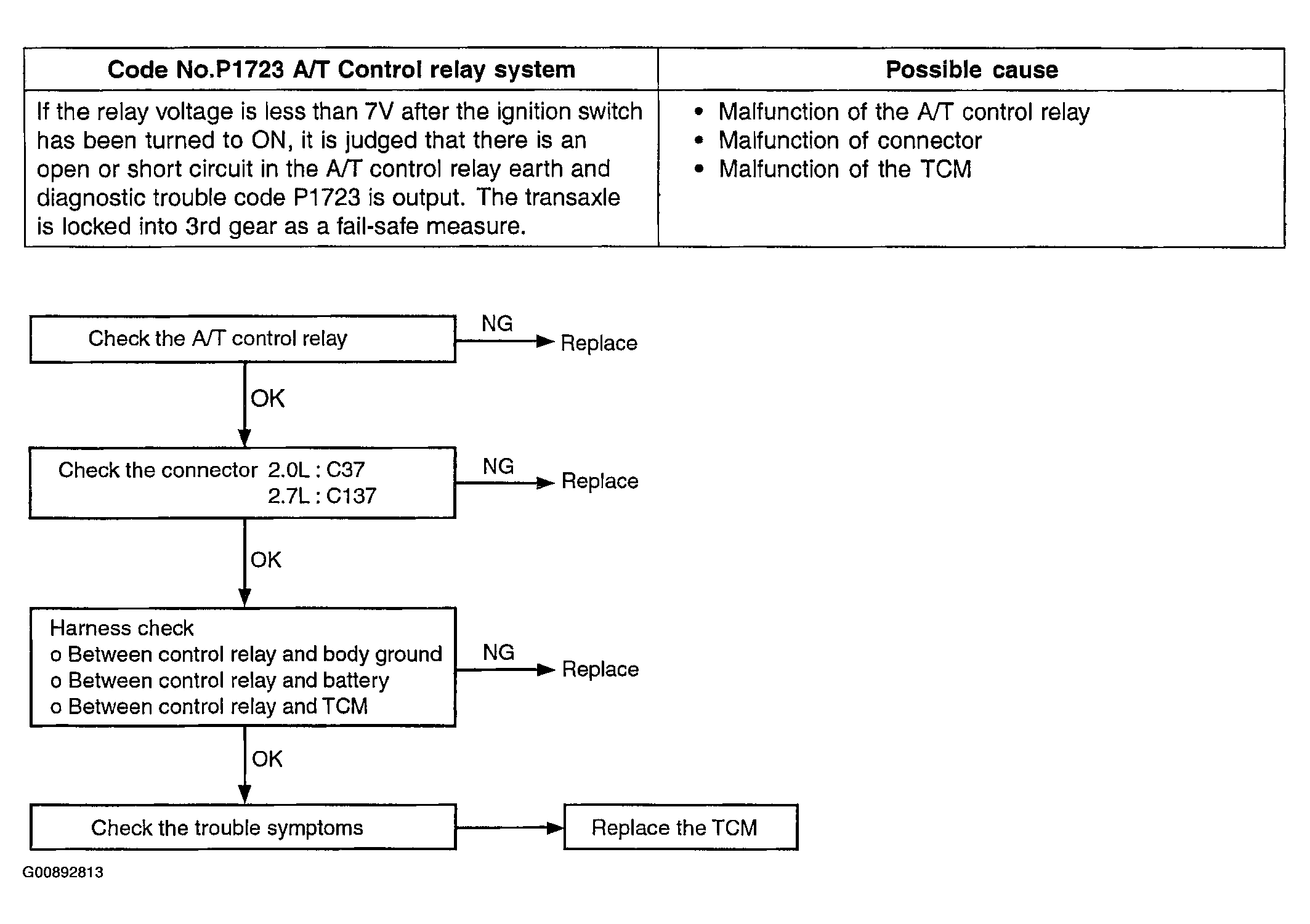

Fig 1: P1723: A/T Control Relay System
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
