Inspection Chart For Diagnostic Trouble Codes (For 2.7 V6)

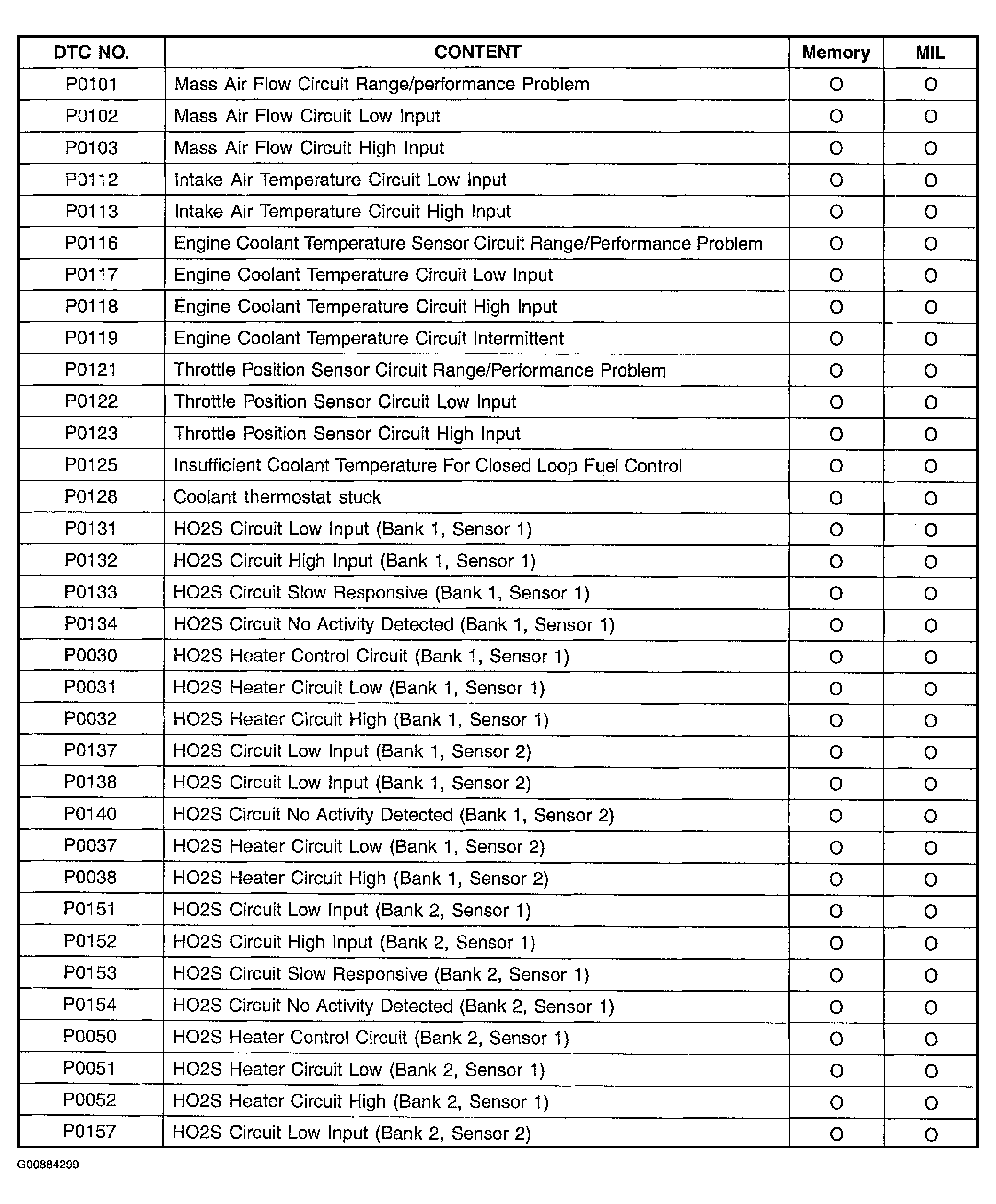

Fig 1: Inspection Chart For Diagnostic Trouble Codes (1 Of 3)
G00884299Courtesy of HYUNDAI MOTOR CO.

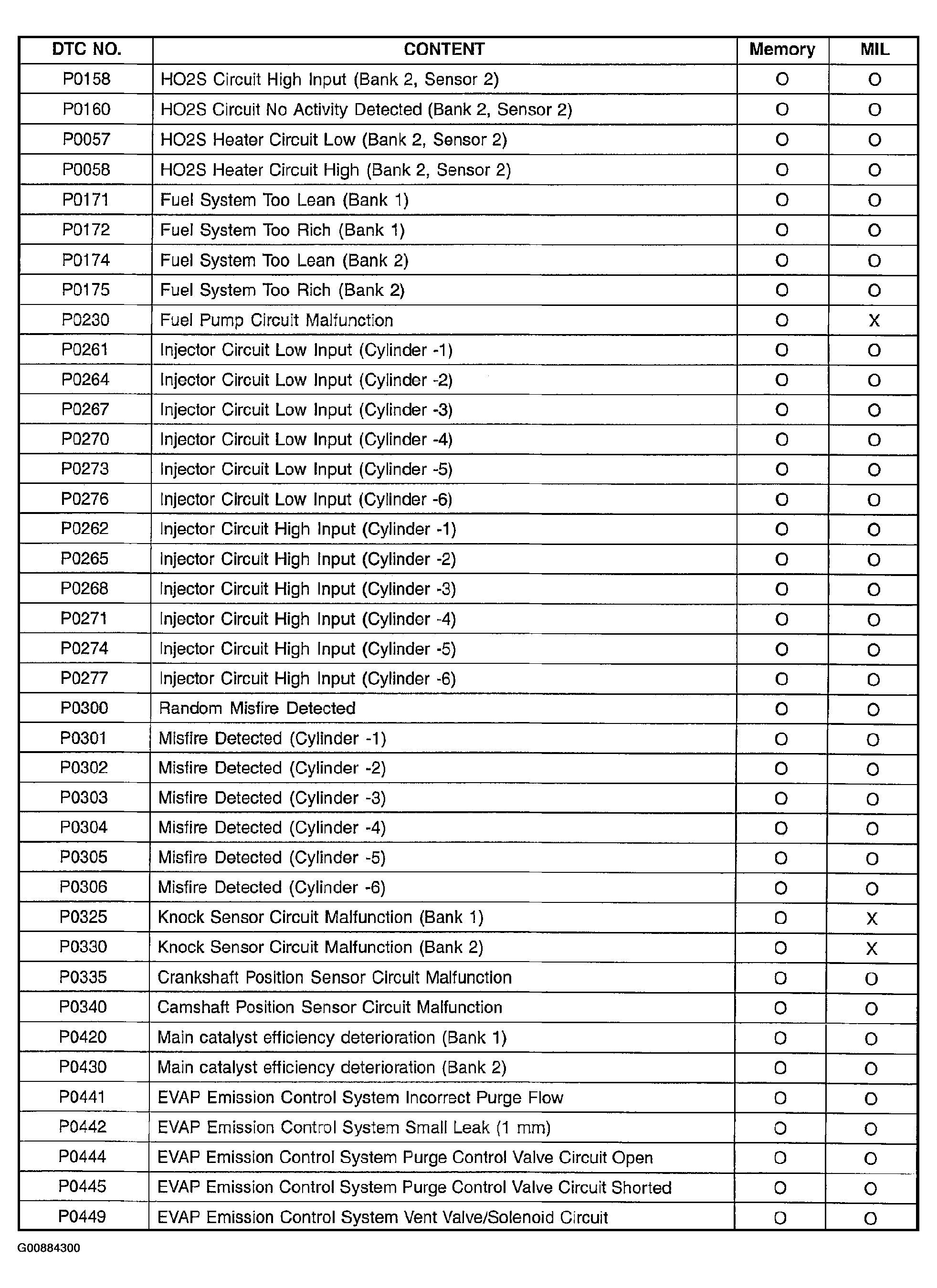

Fig 2: Inspection Chart For Diagnostic Trouble Codes (2 Of 3)
G00884300Courtesy of HYUNDAI MOTOR CO.

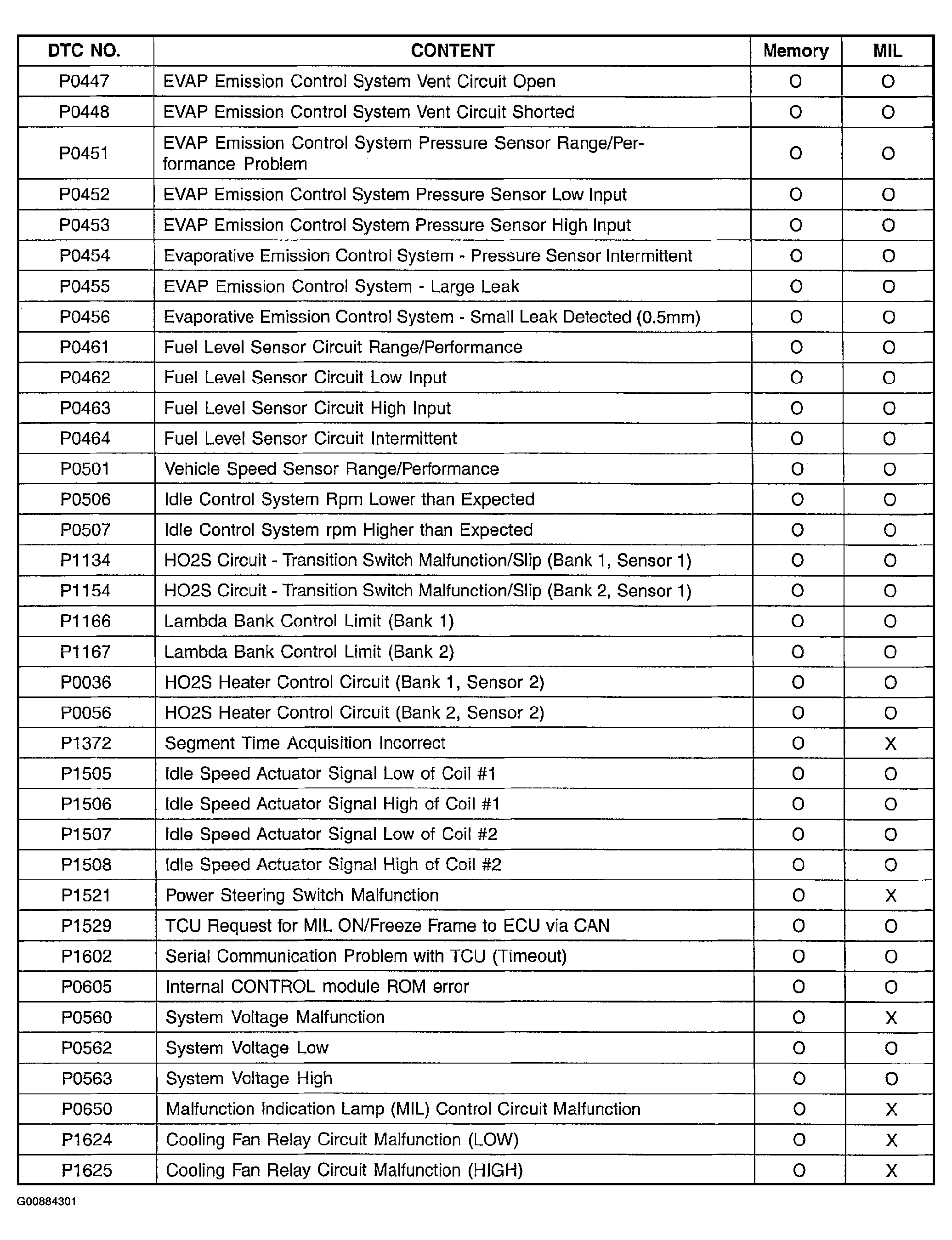

Fig 3: Inspection Chart For Diagnostic Trouble Codes (3 Of 3)
G00884301Courtesy of HYUNDAI MOTOR CO.
