DTC P0461: Fuel Level Sensor Circuit Range/Performance: Specifications

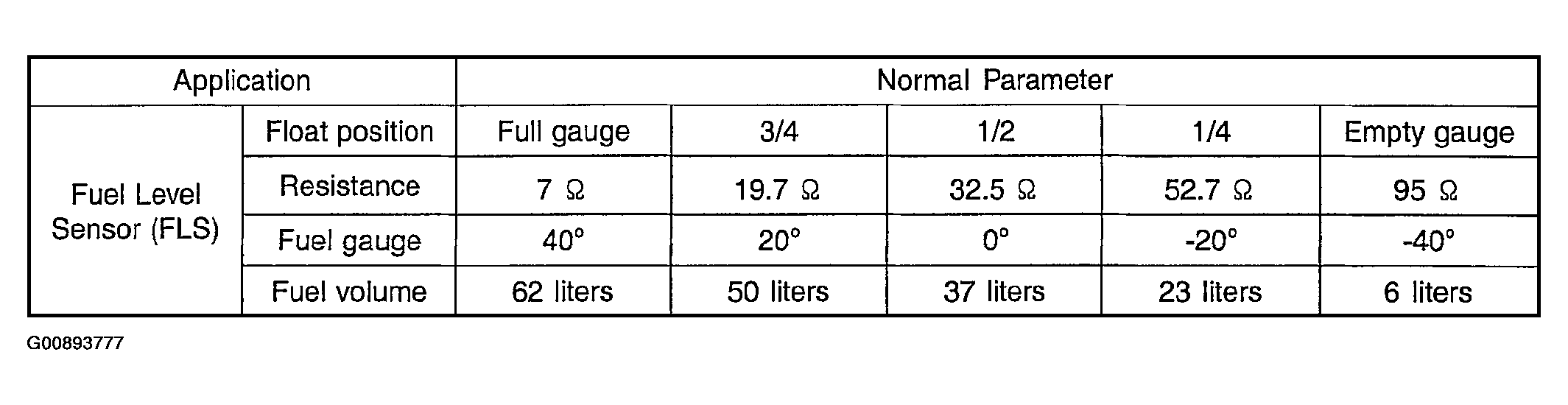

Fig 1: Specifications Table

G00893777

Courtesy of HYUNDAI MOTOR CO.
