DTC P0051: O2 Sensor Heater Circuit Low Input (Bank 2, Sensor 1): DTC Detecting Condition

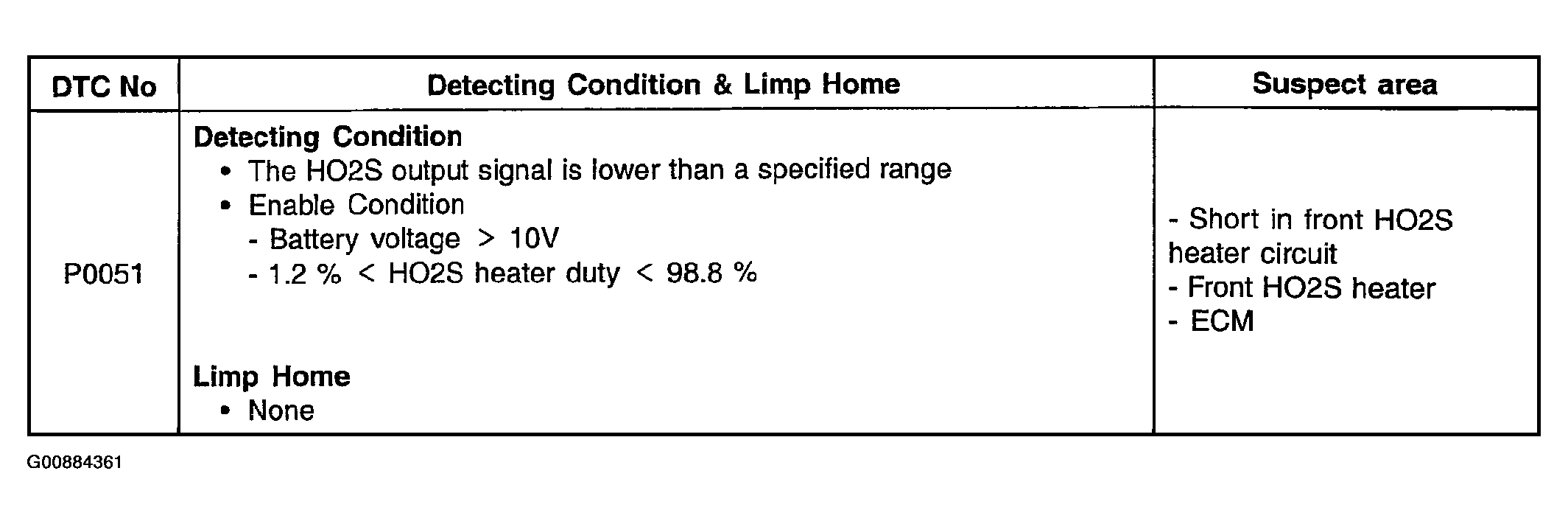

Fig 1: DTC Detecting Condition

G00884361

Courtesy of HYUNDAI MOTOR CO.
