A/C-Heater Control Panel Connector End Views (Manual System)
A/C-Heater Control Panel Connector End Views (Manual System)

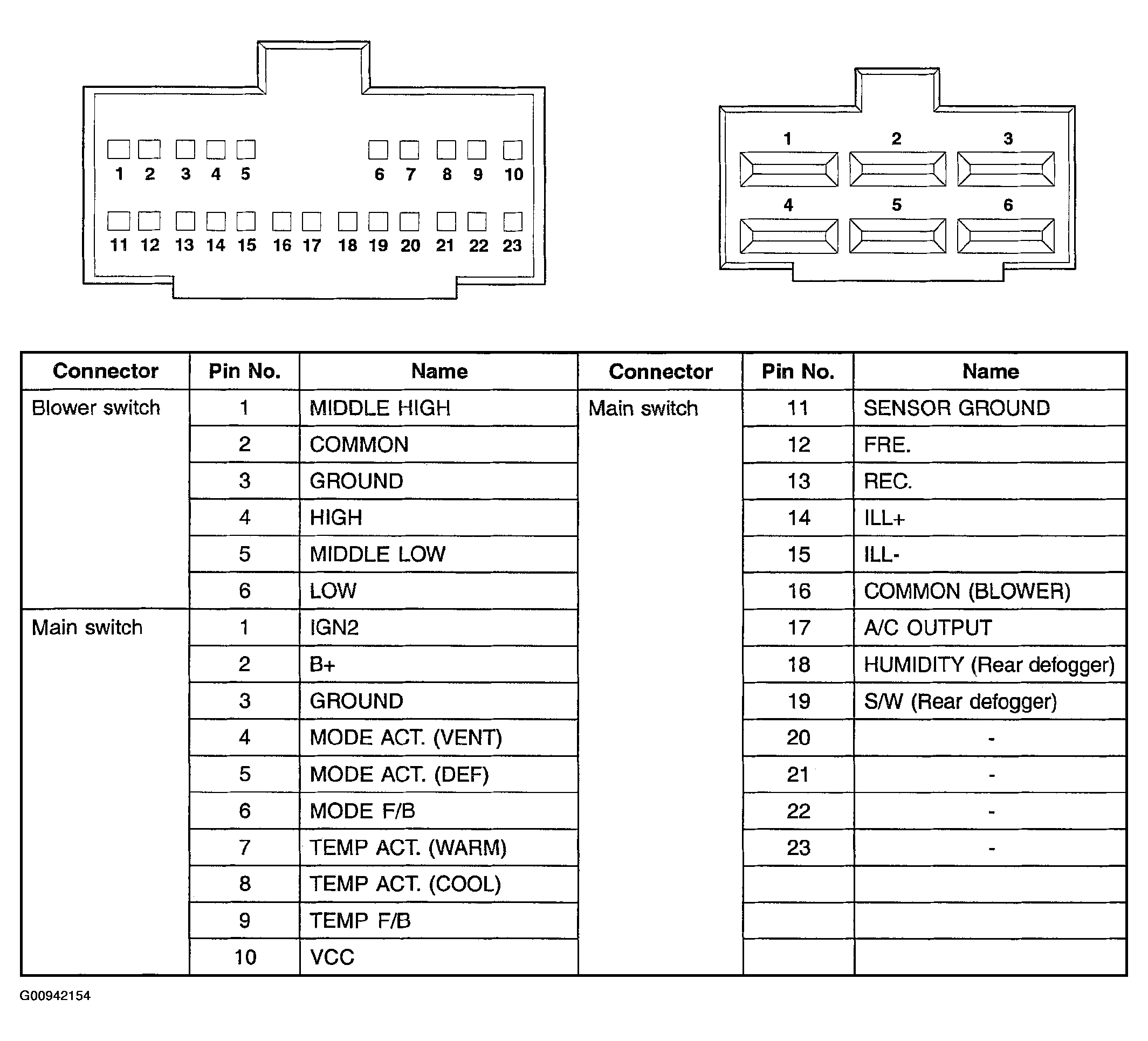

Fig 1: A/C-Heater Control Panel Connector End Views (Manual System)
