(F4A42 Model)

WARNING: This page is about a different variant/trim than selected.

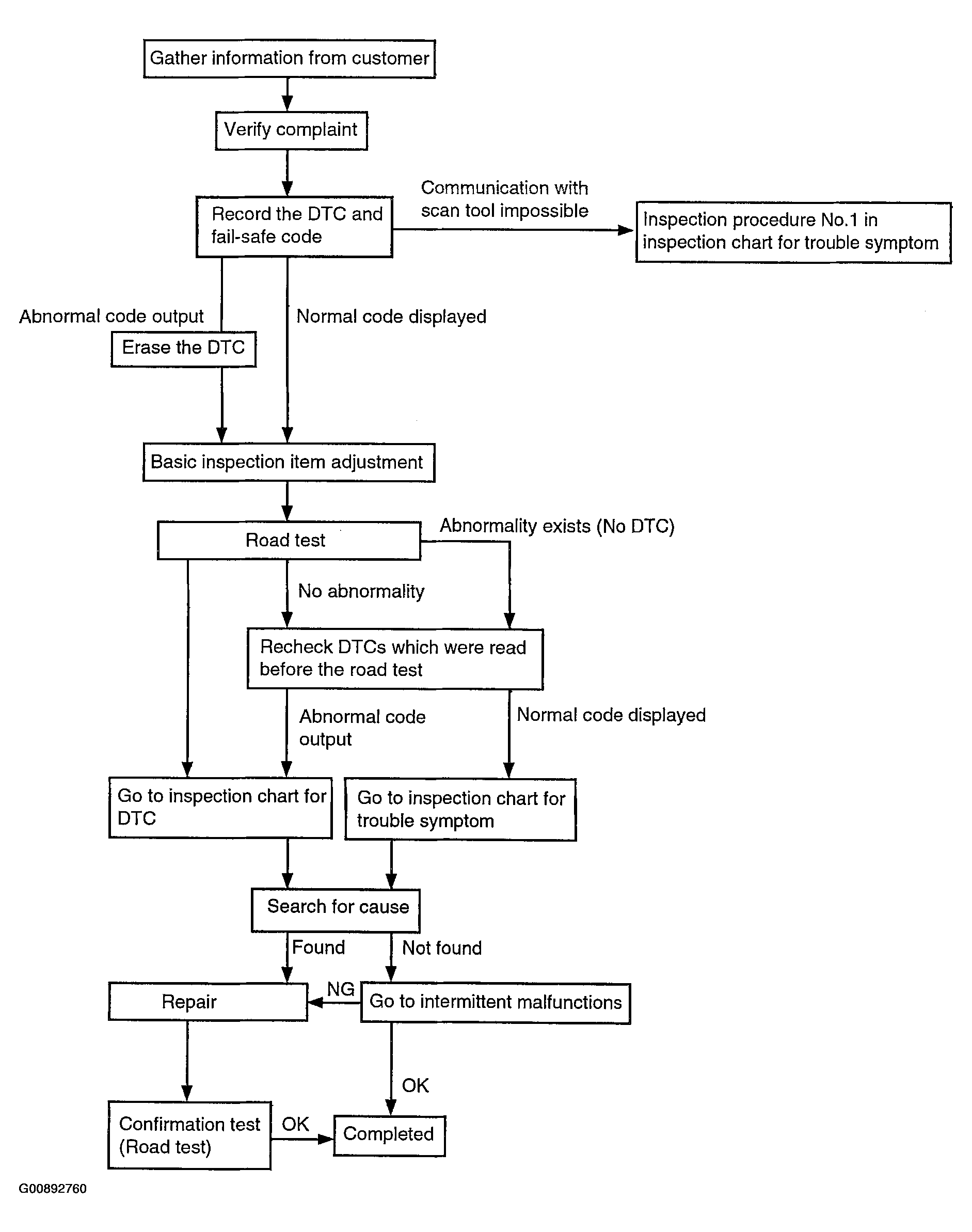

Fig 1: Troubleshooting (A/T)

G00892760

Courtesy of HYUNDAI MOTOR CO.
