Hydraulic Pressure Test Diagnosis Table

WARNING: This page is about a different variant/trim than selected.

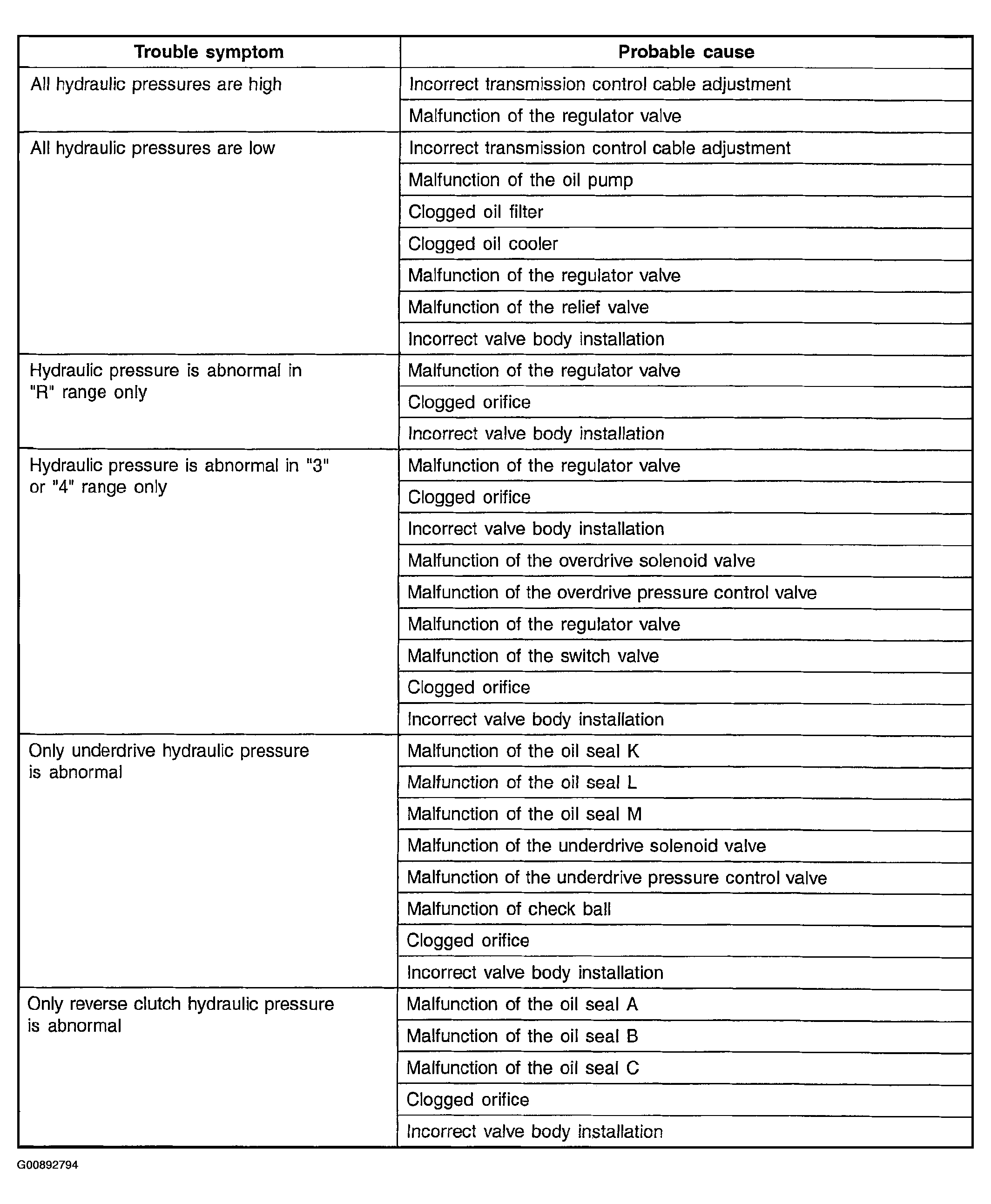

Fig 1: Hydraulic Pressure Test Diagnosis Table (1 Of 2)
G00892794Courtesy of HYUNDAI MOTOR CO.

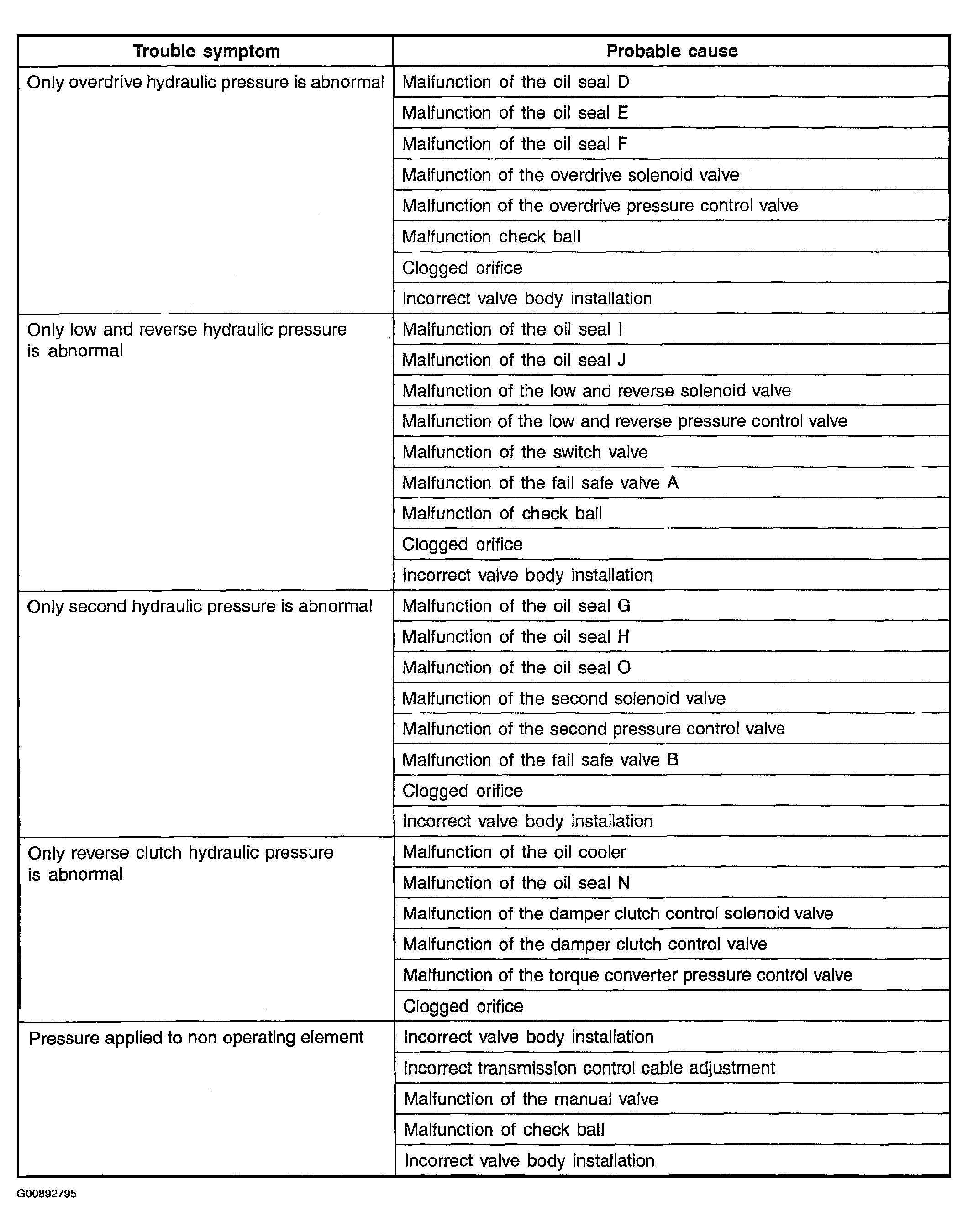

Fig 2: Hydraulic Pressure Test Diagnosis Table (2 Of 2)
G00892795Courtesy of HYUNDAI MOTOR CO.
