Inspection Chart For Diagnostic Trouble Codes (DTC)

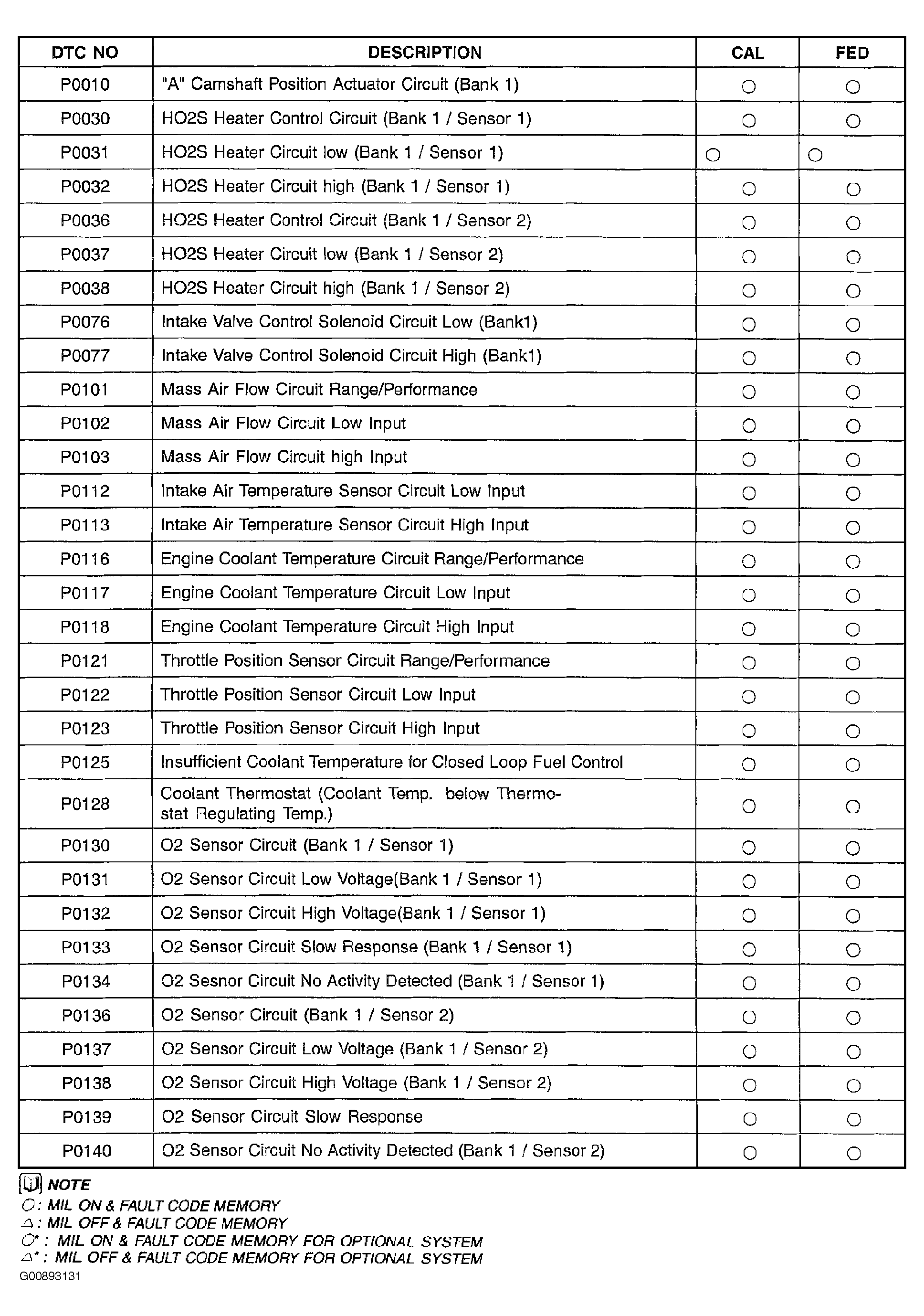

Fig 1: Diagnostic Trouble Codes (DTC) Inspection Chart (1 Of 3)
G00893131Courtesy of HYUNDAI MOTOR CO.

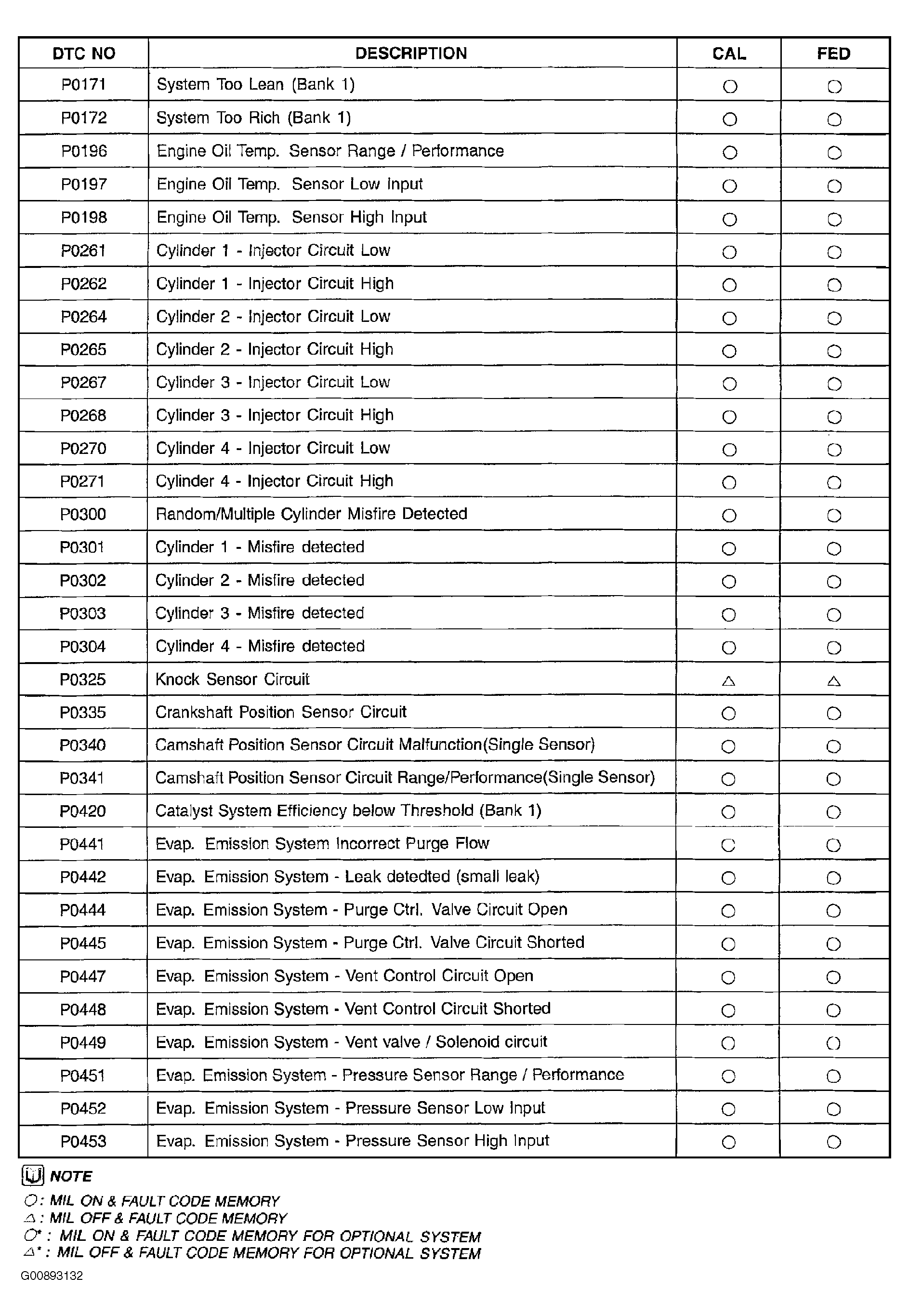

Fig 2: Diagnostic Trouble Codes (DTC) Inspection Chart (2 Of 3)
G00893132Courtesy of HYUNDAI MOTOR CO.

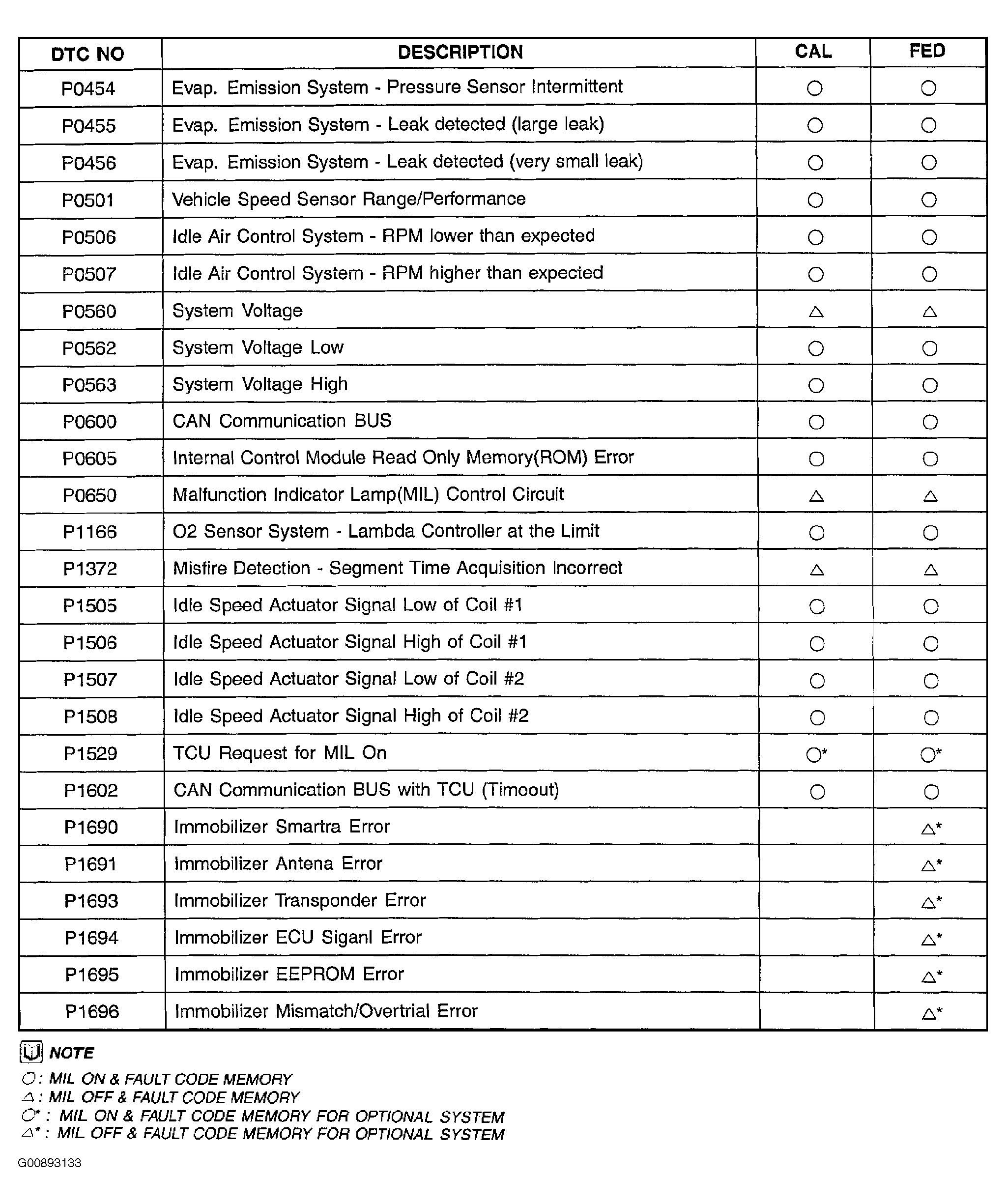

Fig 3: Diagnostic Trouble Codes (DTC) Inspection Chart (3 Of 3)
G00893133Courtesy of HYUNDAI MOTOR CO.
