Body Control Module (BCM): Fuse

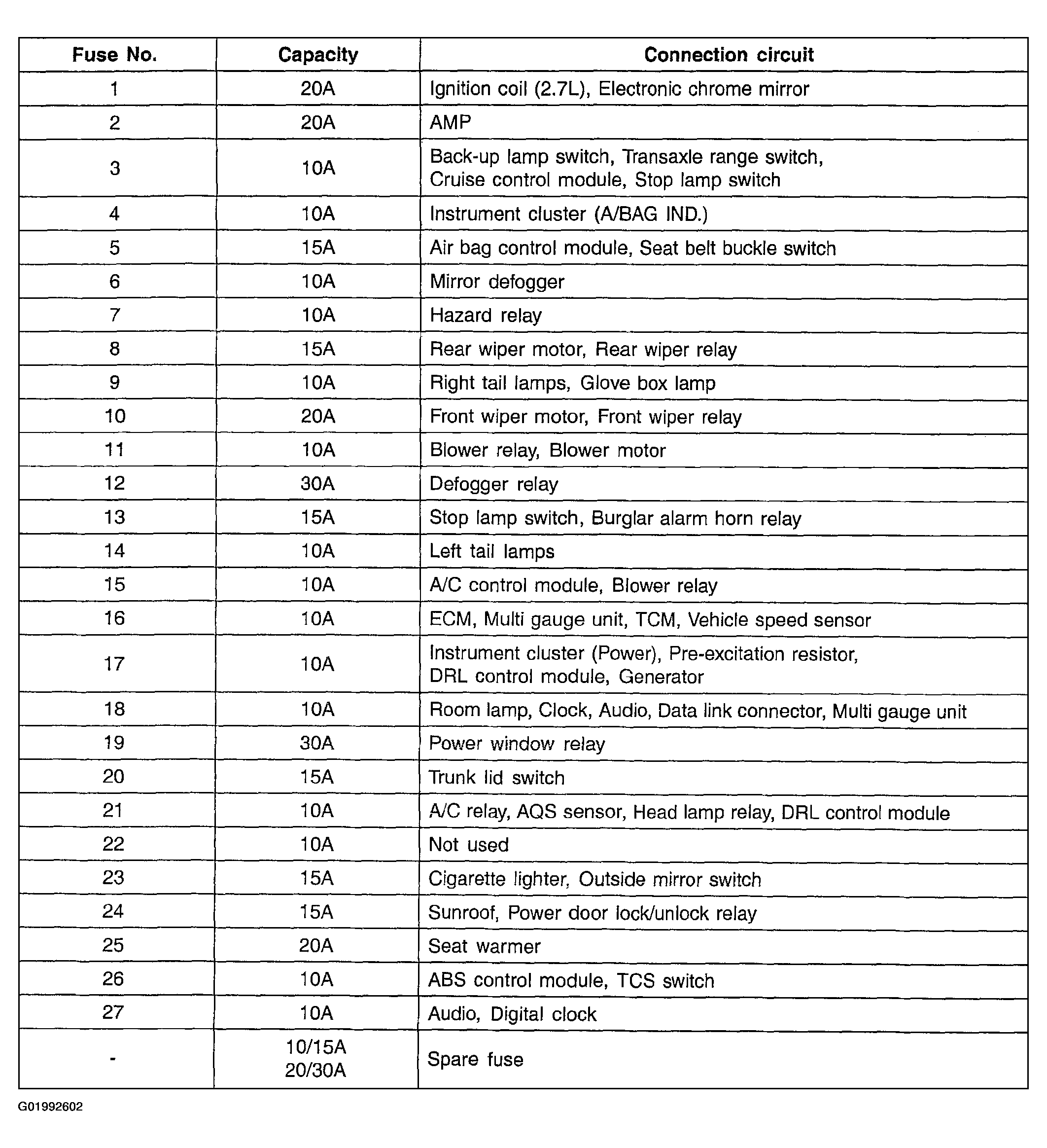

Fig 1: Identifying Fuses

G01992602

Courtesy of HYUNDAI MOTOR CO.

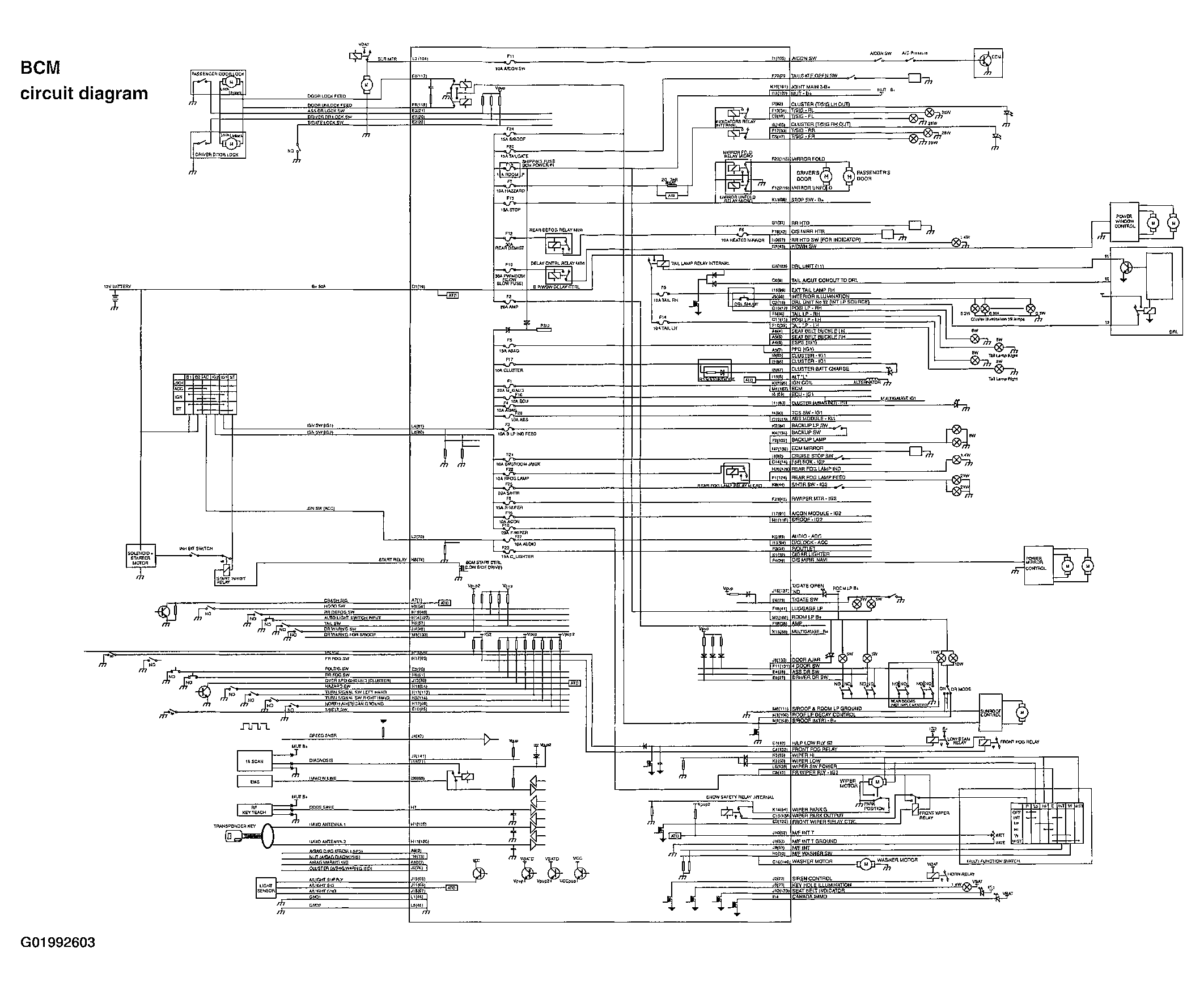

Fig 2: BCM Circuit Diagram

G01992603

Courtesy of HYUNDAI MOTOR CO.
