Inspect Circuits For Daytime Running Light System

  1. Disconnect the wire connector to DRL module from engine compartment.

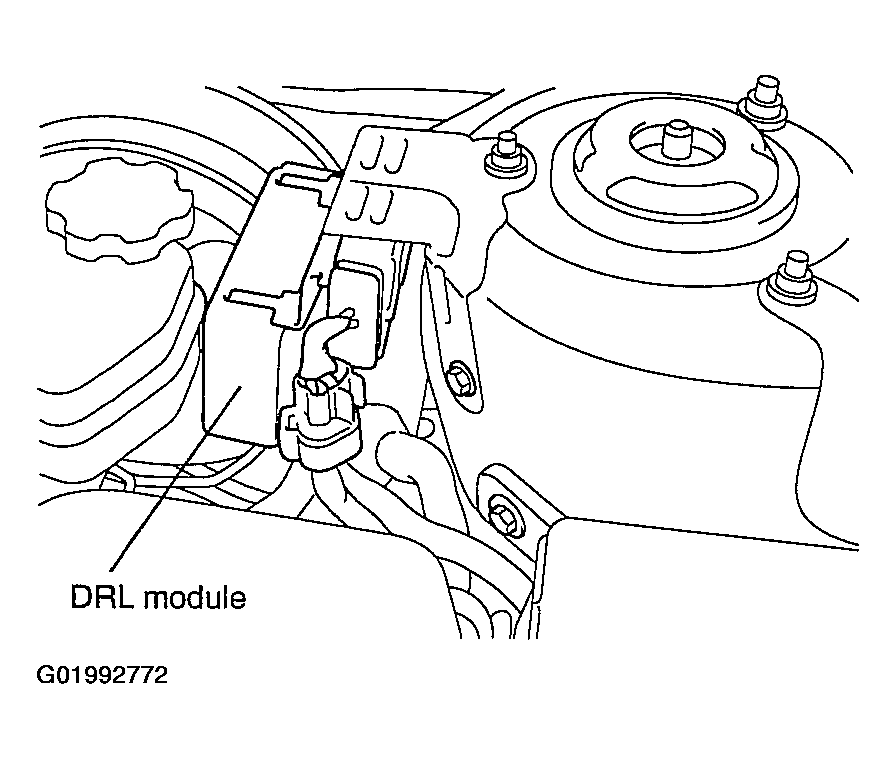

    Fig 1: Locating DRL Module
    G01992772Courtesy of HYUNDAI MOTOR CO.
  2. Inspect the connector on wire harness side as shown.
    Fig 2: Identifying DRL Module Harness Side Connector
    G01992773Courtesy of HYUNDAI MOTOR CO.

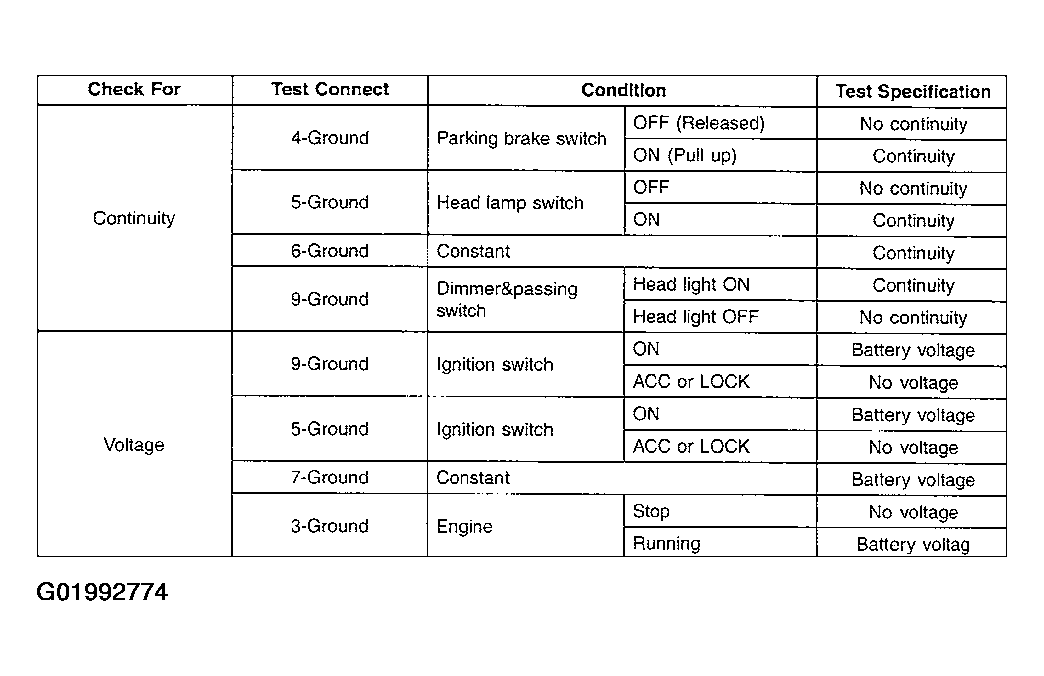

    Fig 3: Inspecting Circuits For Daytime Running Light System
    G01992774Courtesy of HYUNDAI MOTOR CO.
  3. If circuit is not as specified, refer to schematic diagram and inspect for short circuits.
