Inspection Procedure For Trouble Symptoms
>>
Inspection Procedure 6
Inspection Procedure 6

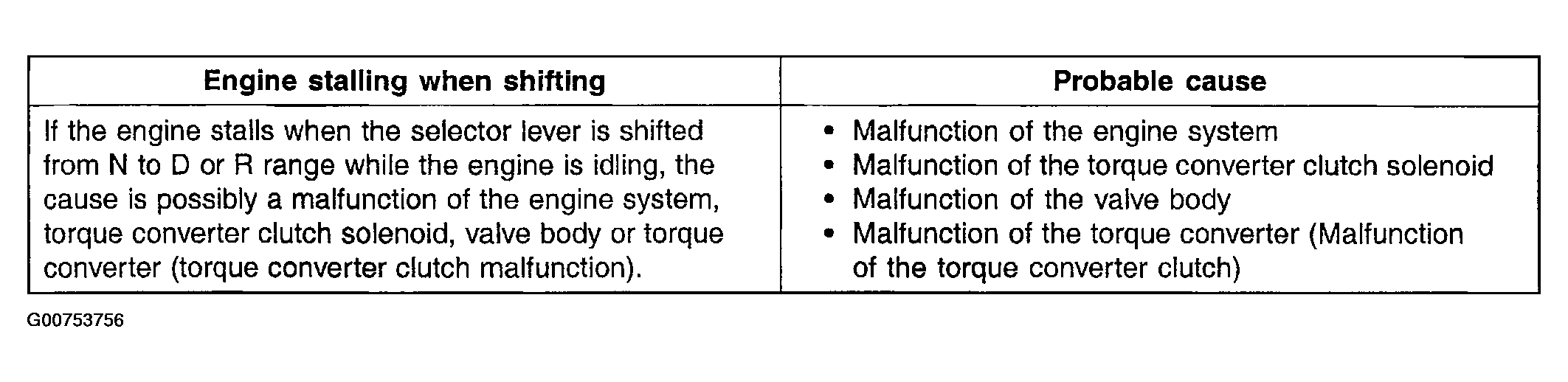

Fig 1: Engine Stalling When Shifting, Possible Causes Table
Courtesy of HYUNDAI MOTOR CO.

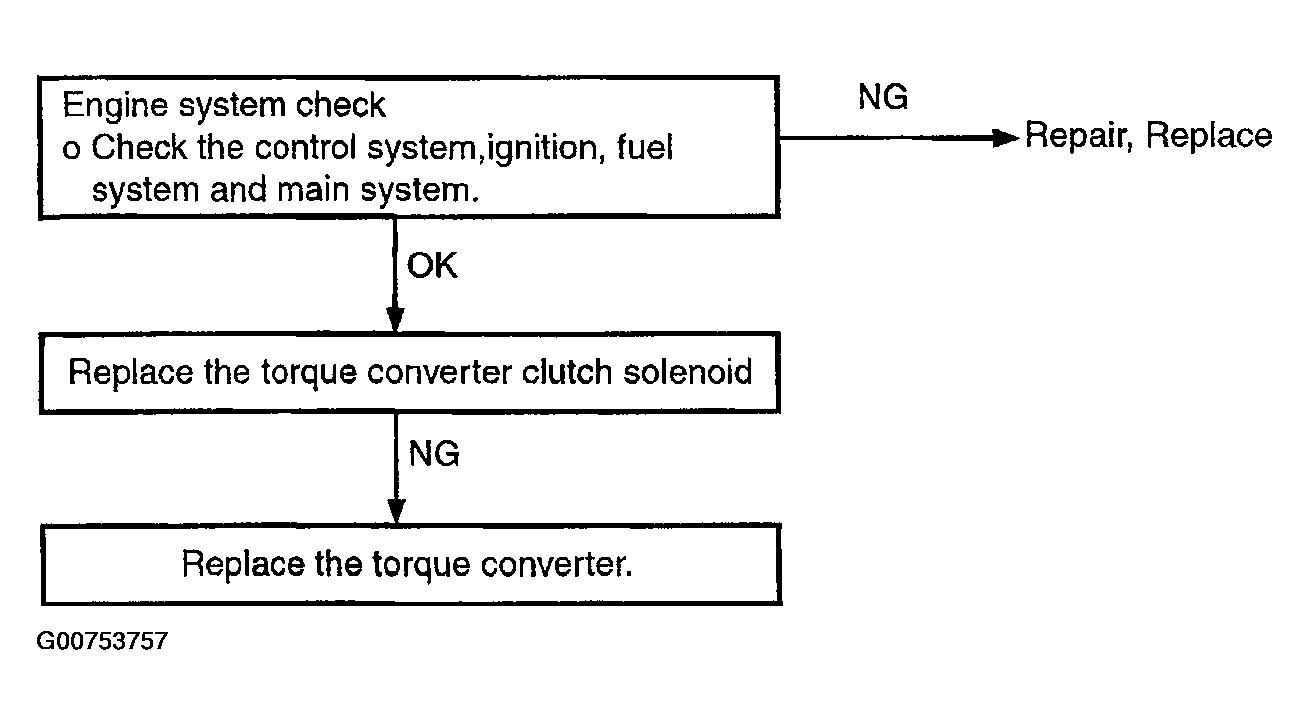

Fig 2: Engine Stalling When Shifting, Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
