Identification Of Thrust Bearing, Thrust Races, & Thrust Washers

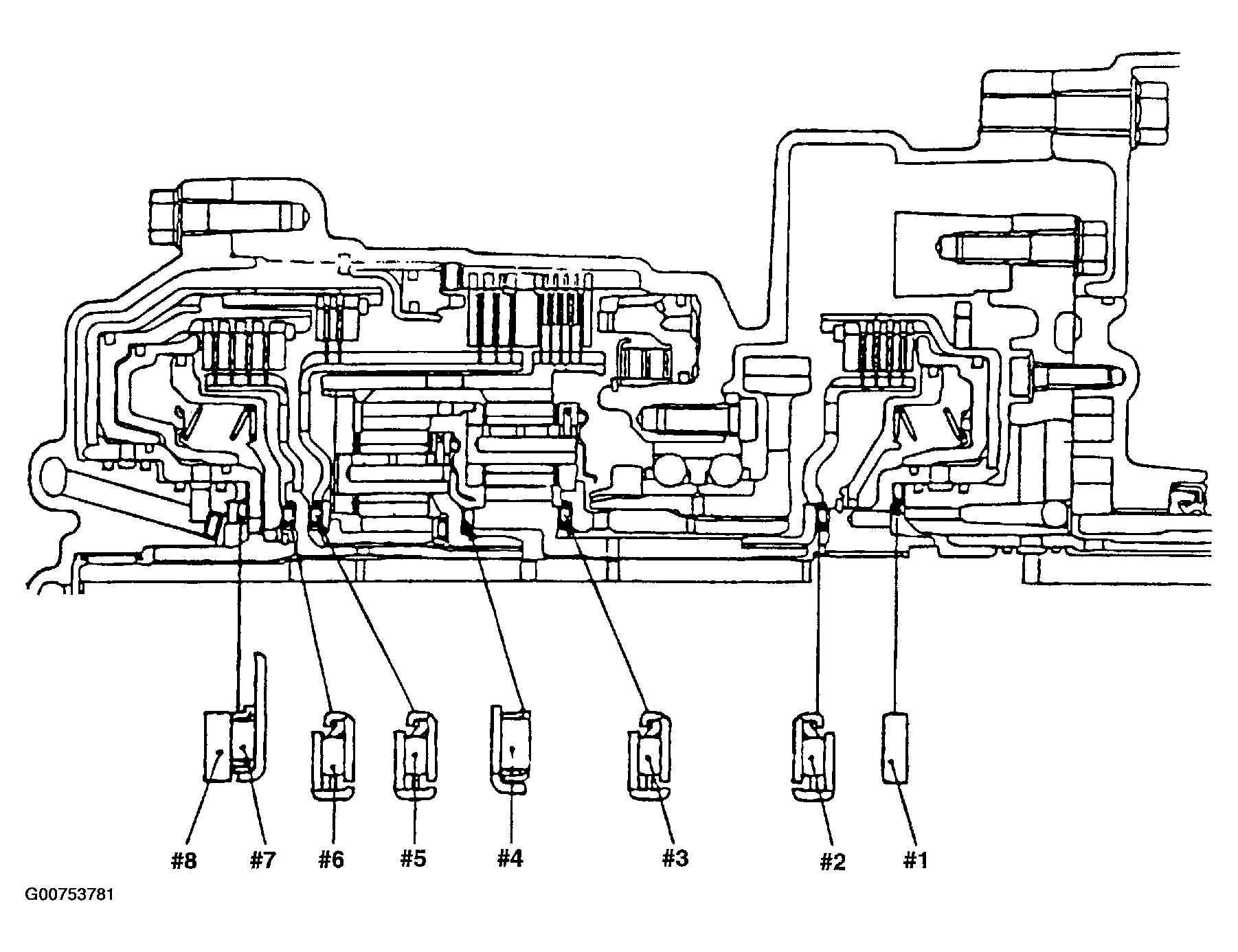

Fig 1: Identification Of Thrust Bearing, Thrust Races, & Thrust Washers (1 Of 2)
G00753781Courtesy of HYUNDAI MOTOR CO.

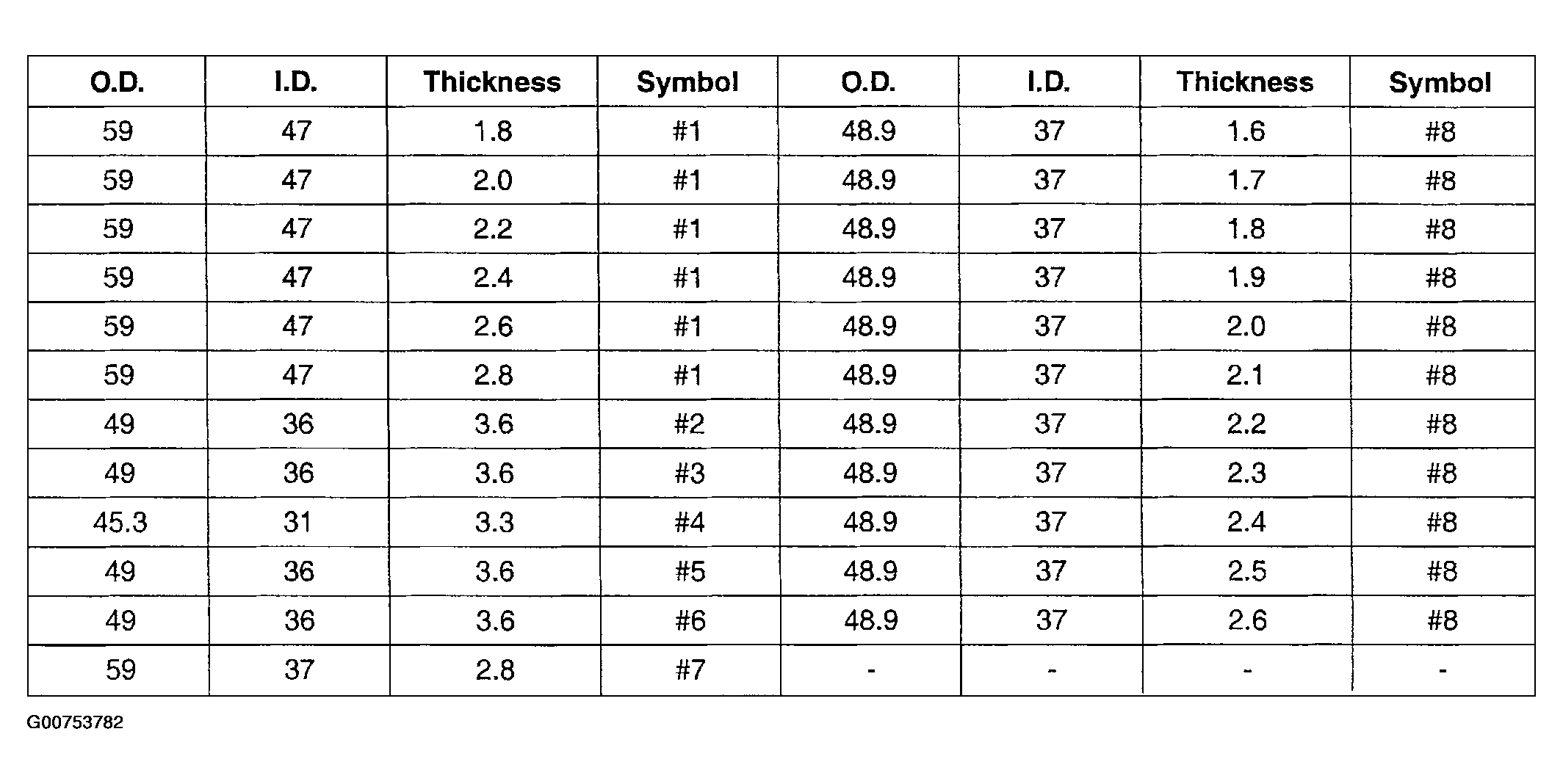

Fig 2: Identification Of Thrust Bearing, Thrust Races, & Thrust Washers (2 Of 2)
G00753782Courtesy of HYUNDAI MOTOR CO.
