Inspection Procedures For Diagnostic Trouble Codes
>>
DTC P1723: A/T Control Relay System
DTC P1723: A/T Control Relay System

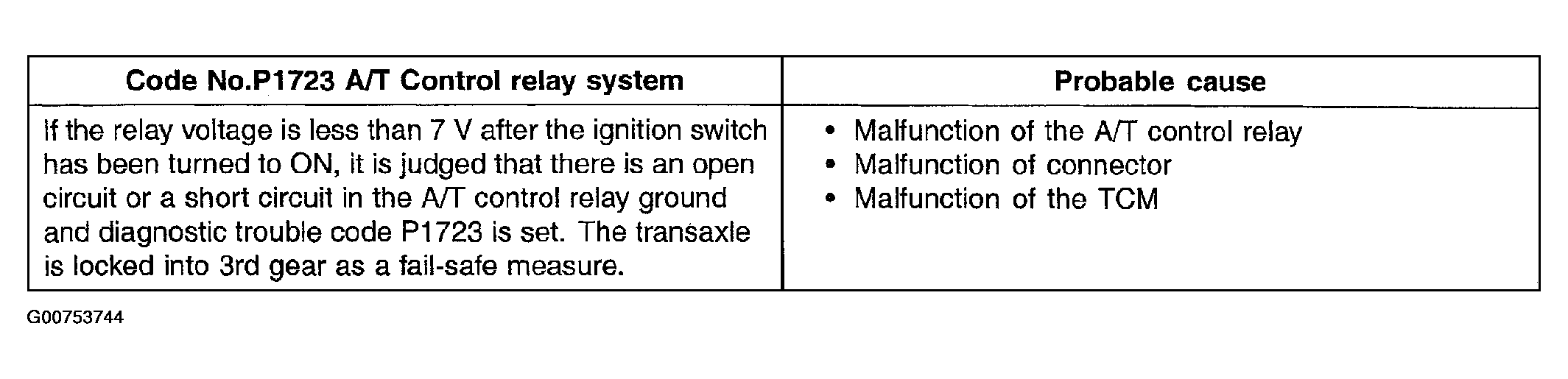

Fig 1: DTC P1723 Probable Cause Table
Courtesy of HYUNDAI MOTOR CO.

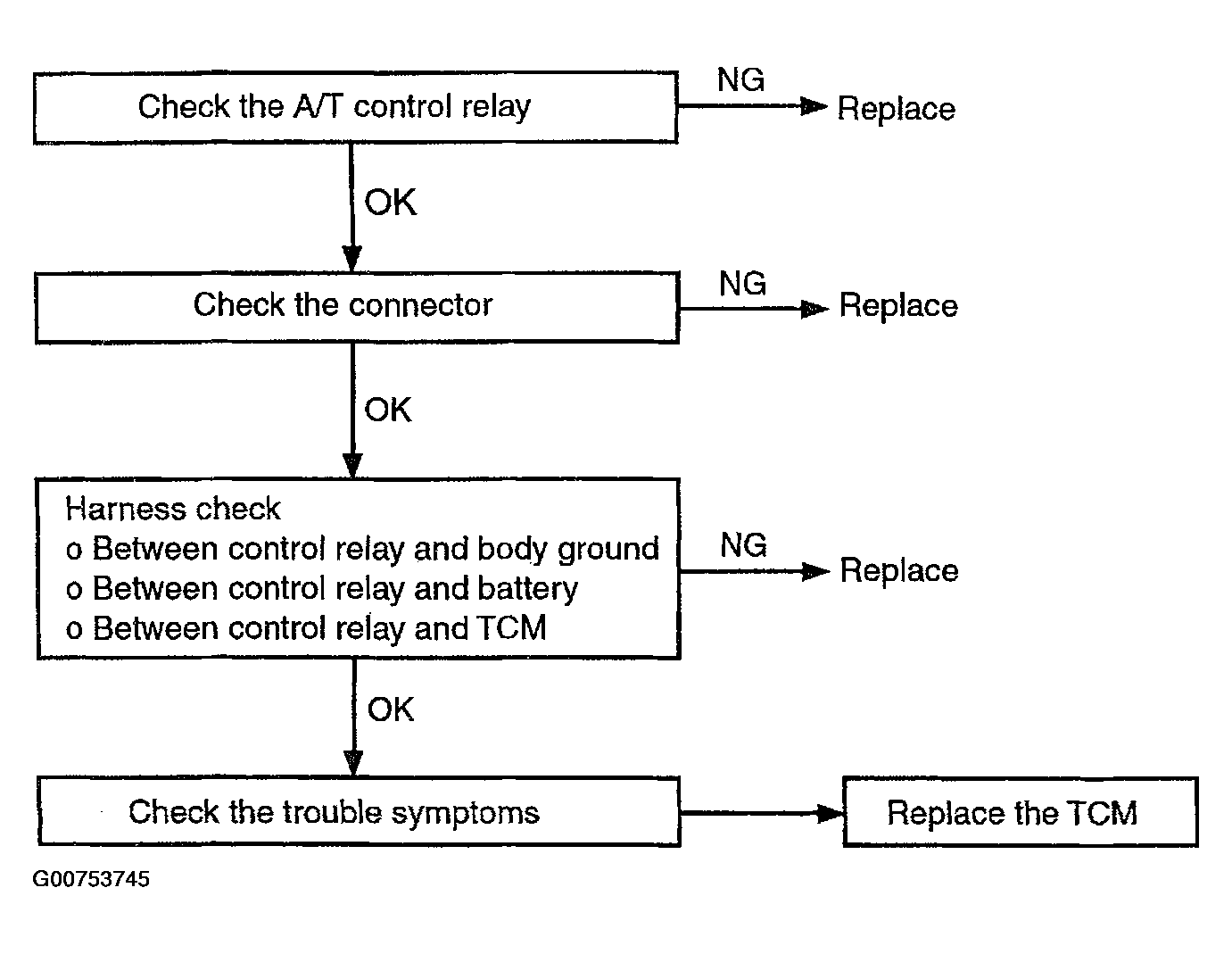

Fig 2: DTC P1723 Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
