Inspection Procedure 12

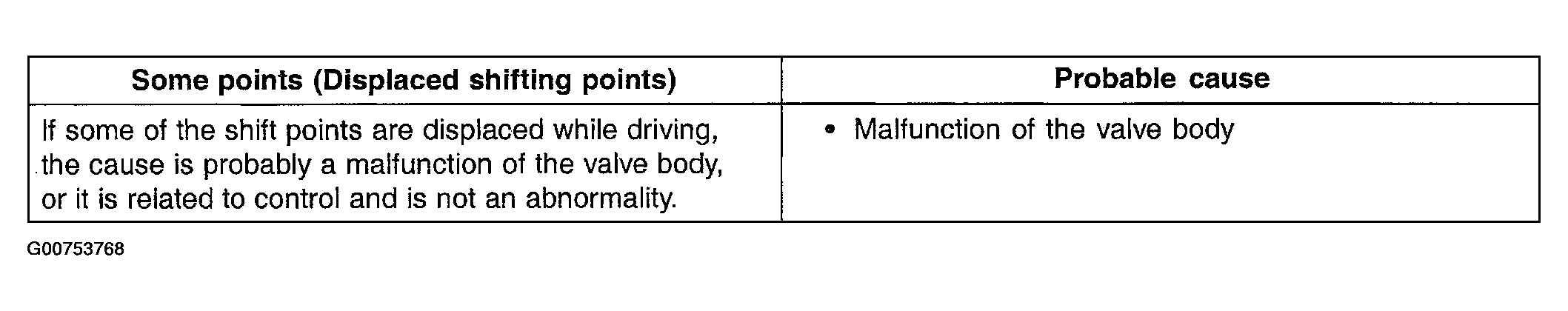

Fig 1: Some Points (Displaced Shifting Points), Possible Causes Table
G00753768Courtesy of HYUNDAI MOTOR CO.

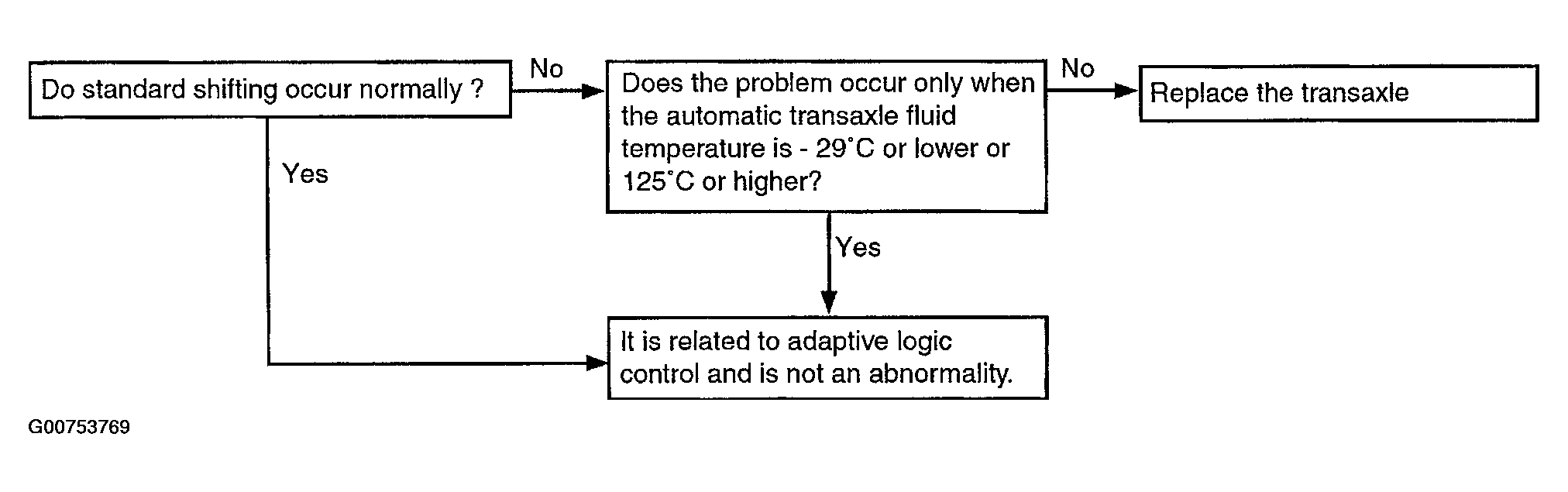

Fig 2: Some Points (Displaced Shifting Points), Diagnostic Flow Chart
G00753769Courtesy of HYUNDAI MOTOR CO.
