DTC P1702-P1704: Throttle Position Sensor System

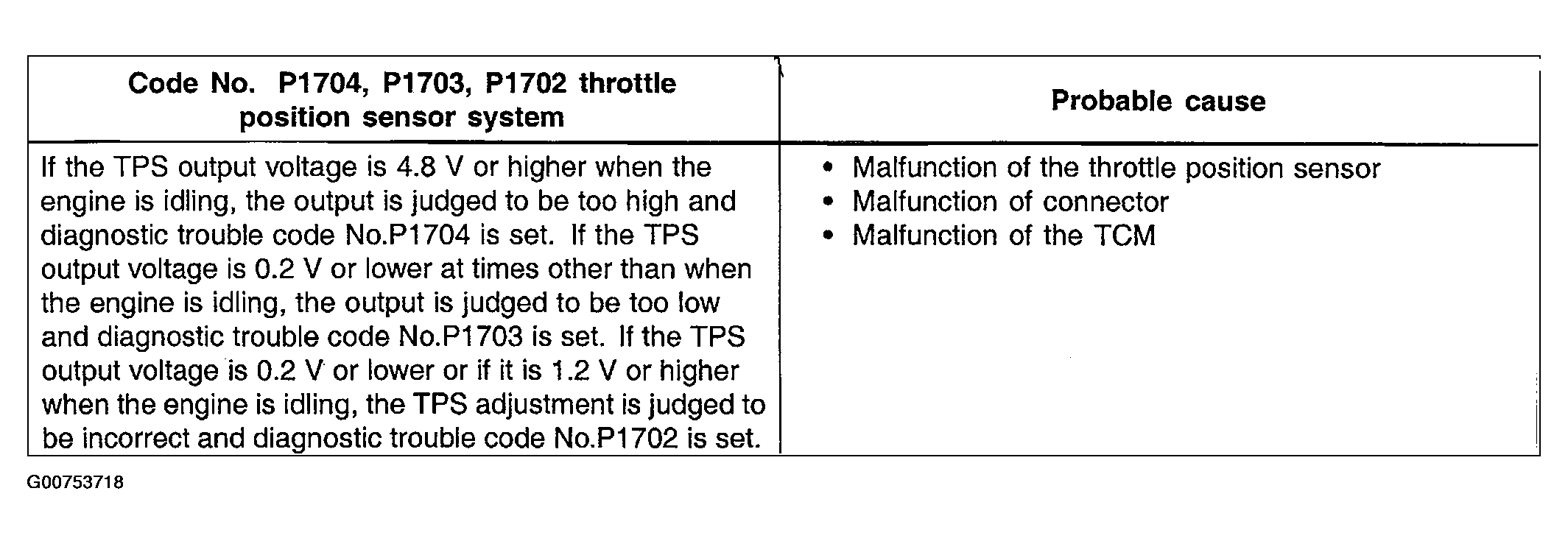

Fig 1: DTC P1702-P1704 Probable Cause Table

G00753718

Courtesy of HYUNDAI MOTOR CO.

Fig 2: DTC P1702-P1704 Diagnostic Flow Chart

G00753719

Courtesy of HYUNDAI MOTOR CO.
