Inspection Procedure 13

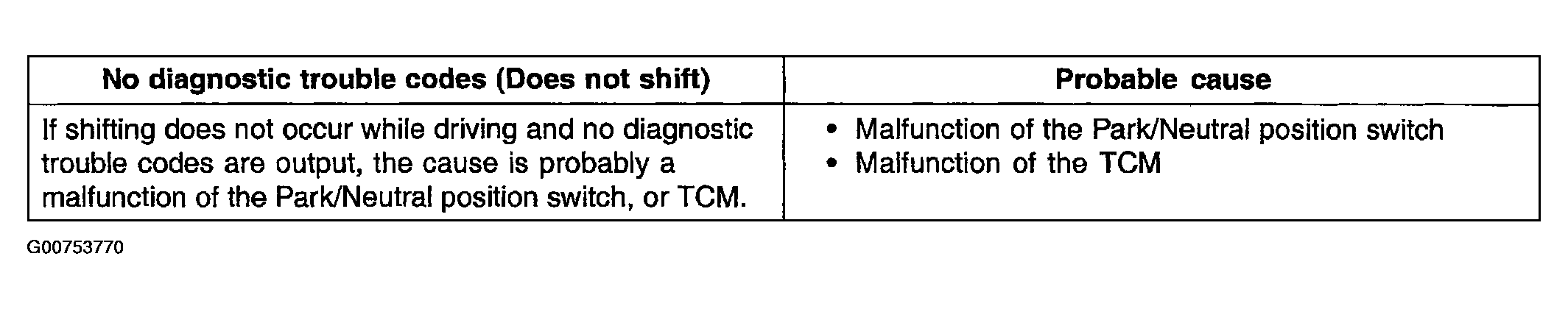

Fig 1: No Diagnostic Trouble Codes (Does Not Shift), Possible Causes Table
G00753770Courtesy of HYUNDAI MOTOR CO.

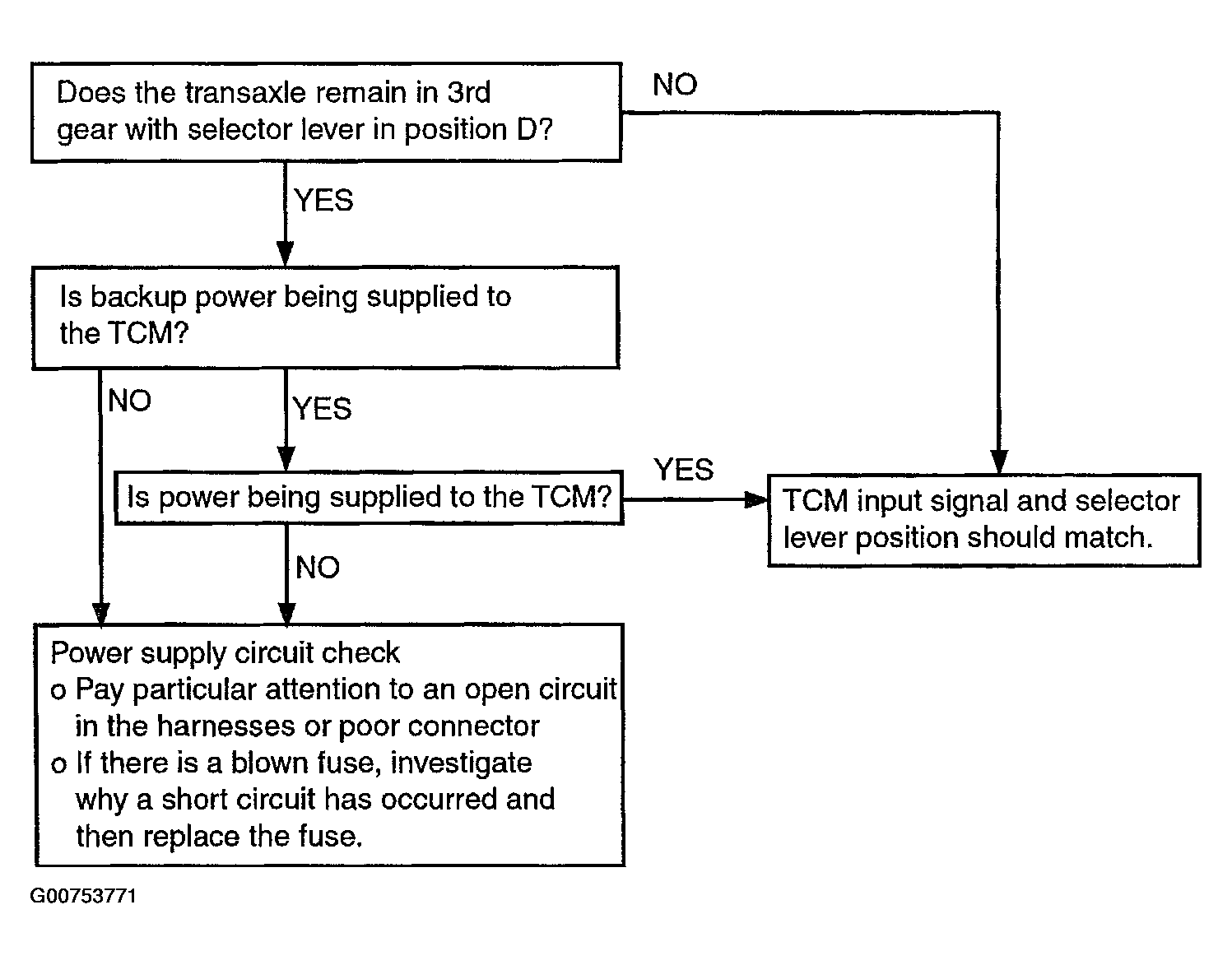

Fig 2: No Diagnostic Trouble Codes (Does Not Shift), Diagnostic Flow Chart
G00753771Courtesy of HYUNDAI MOTOR CO.
