Section 2 (Automatic Transaxle System)
>>
Automatic Transaxle System
>>
Troubleshooting (A/T)
>>
Notes
Troubleshooting (A/T): Notes
WARNING:
This page is about a different variant/trim than selected.
(F4A42 MODEL)

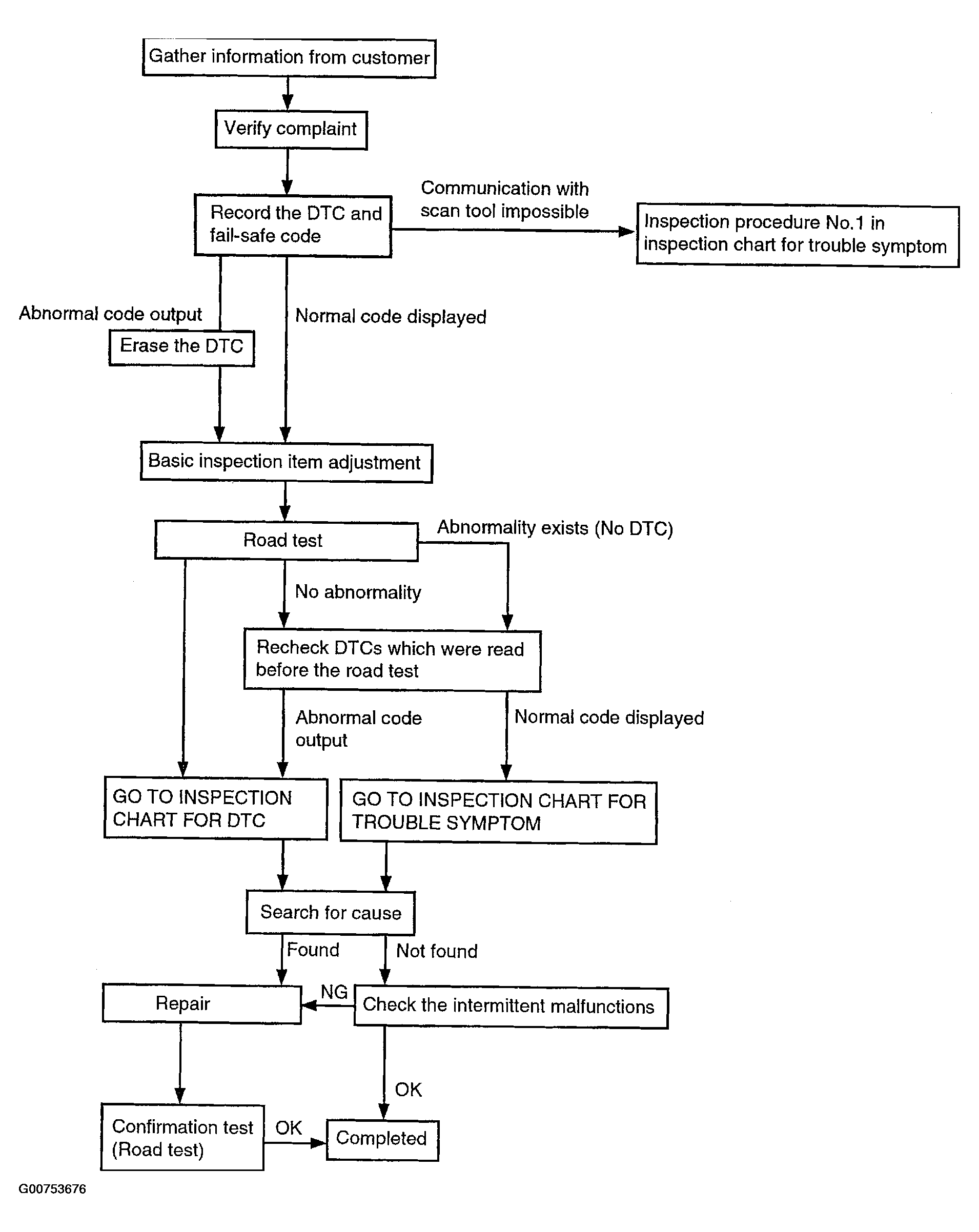

Fig 1: Troubleshooting Flow Chart
Courtesy of HYUNDAI MOTOR CO.
