Automatic Transaxle: Components

WARNING: This page is about a different variant/trim than selected.

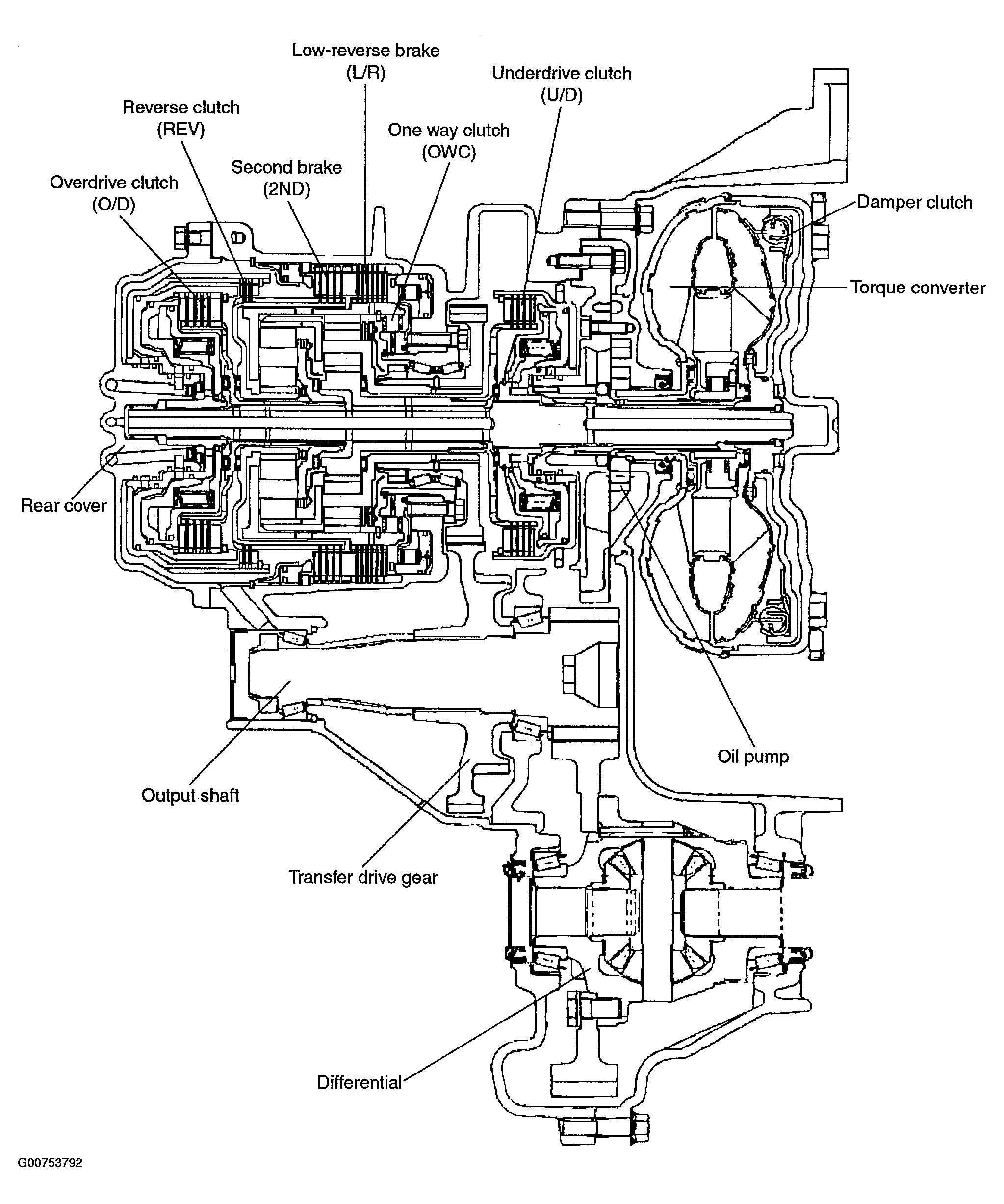

Fig 1: Automatic Transaxle Components

G00753792

Courtesy of HYUNDAI MOTOR CO.
