Fuel Tank & Fuel Line
Fuel Tank & Fuel Line

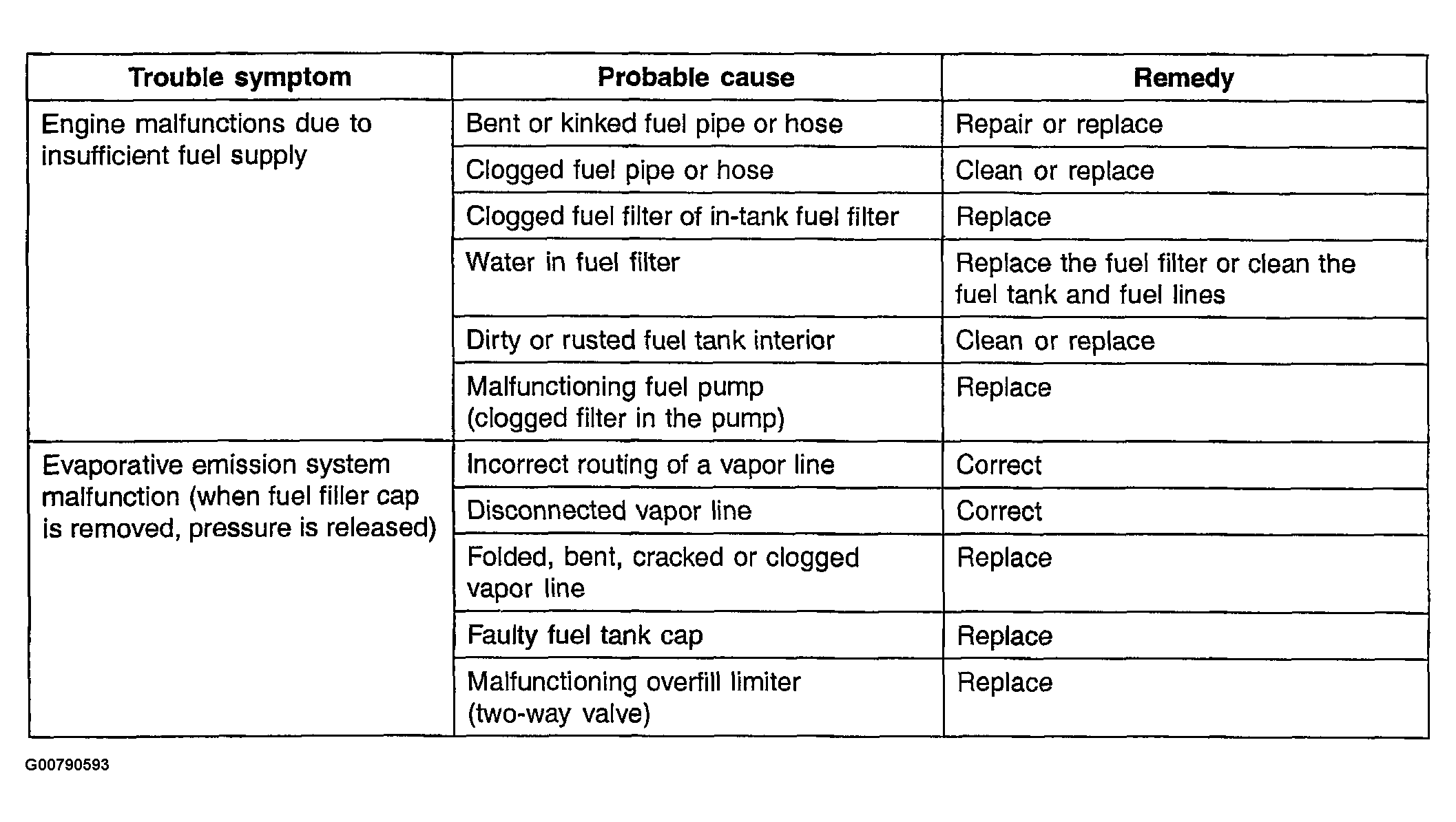

Fig 1: Fuel Tank & Fuel Line Troubleshooting Table
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
