System Inspection

  1. Check cooling system coolant level and fill if low.
  2. Ignition "ON" & Engine "OFF"
  3. Perform Actuation test for Radiator fan with scan tool.

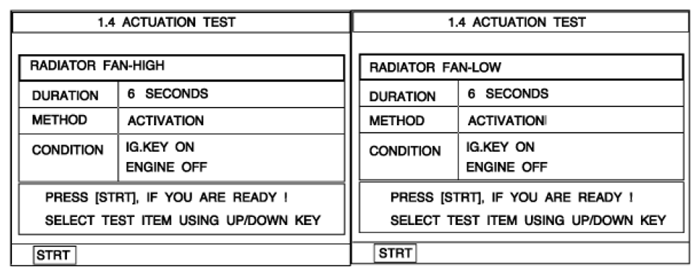

    Fig 1: Screen Display - Radiator Fan Actuation Test
    G07378496
  4. Has a problem been found?

    YES

    NO
