Section 1 (Automatic Transaxle System)
>>
Automatic Transaxle System
>>
Troubleshooting (A/T)
Troubleshooting (A/T)
WARNING:
This page is about a different variant/trim than selected.

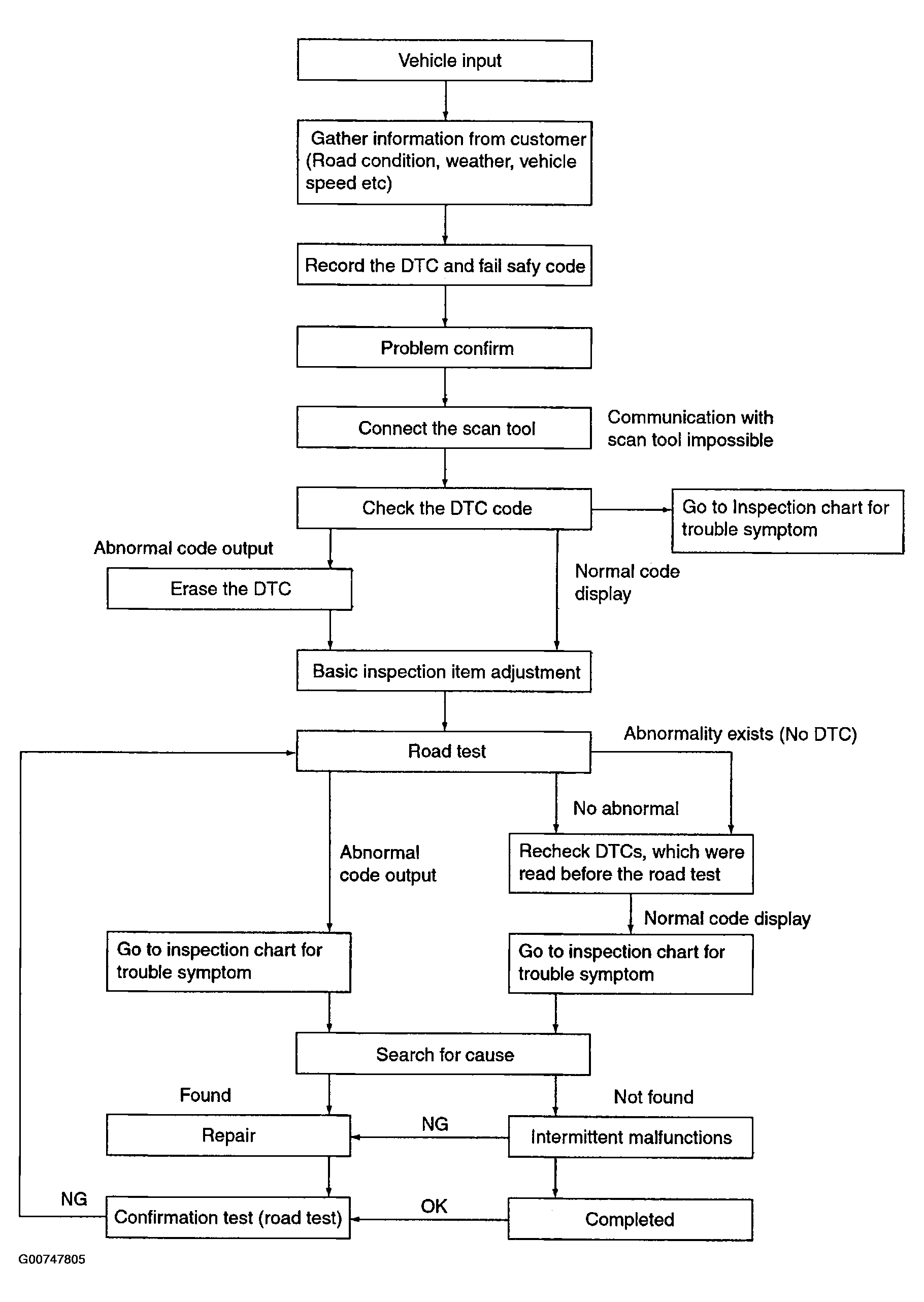

Fig 1: Automatic Transaxle System (F4A42) Troubleshooting Flow Chart
Courtesy of HYUNDAI MOTOR CO.
