3. Check The A/T Control Relay Continuity

WARNING: This page is about a different variant/trim than selected.

Remove the A/T control relay.
Use jumper wires to connect A/T control relay terminal (2) to the battery (+) terminal and terminal (4) to the battery (-) terminal.
Check for continuity between terminal (1) and terminal (3) of the A/T control relay when the jumper wires are connected to and disconnected from the battery.

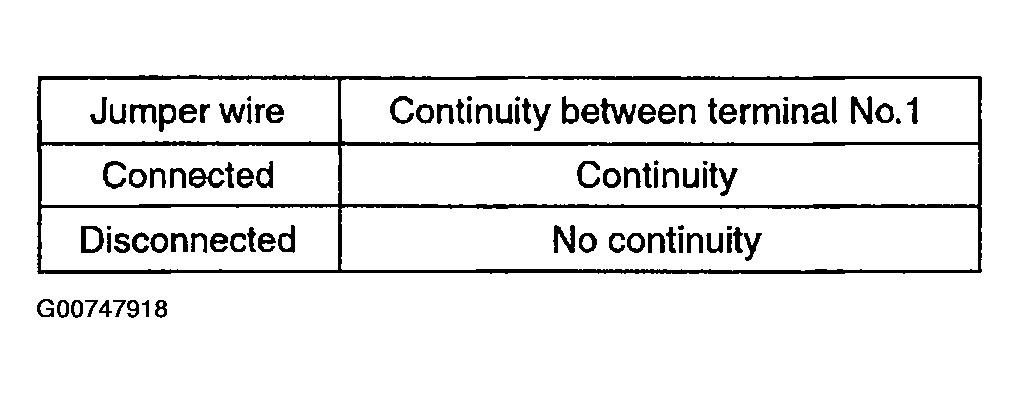

Fig 1: A/C Relay Continuity Table
Courtesy of HYUNDAI MOTOR CO.

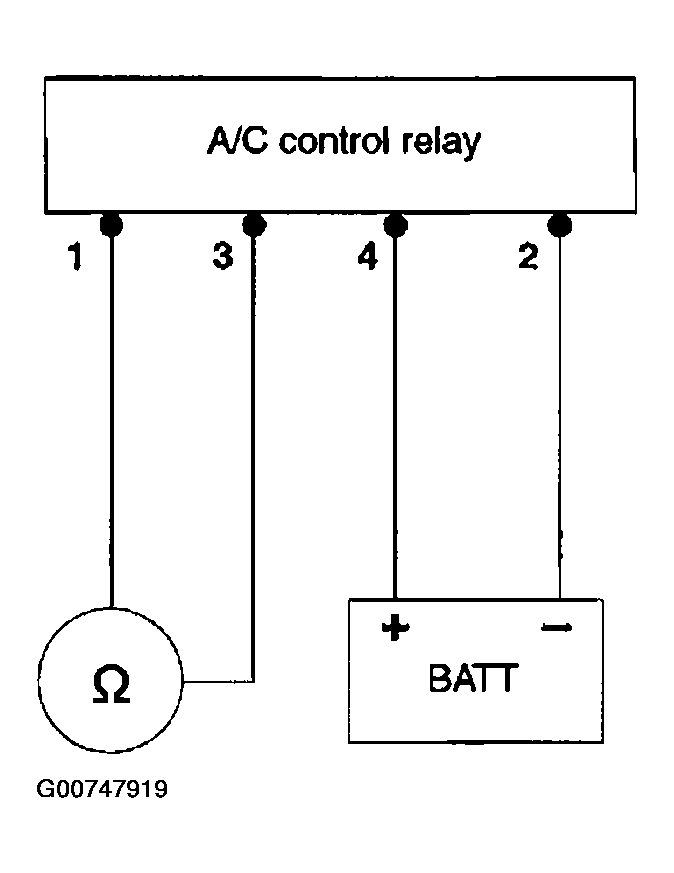

Fig 2: Checking A/C Relay Continuity
Courtesy of HYUNDAI MOTOR CO.

Is there continuity?

Yes: Go to next step.

No: Replace the A/T control relay.
