Throttle Body: Components

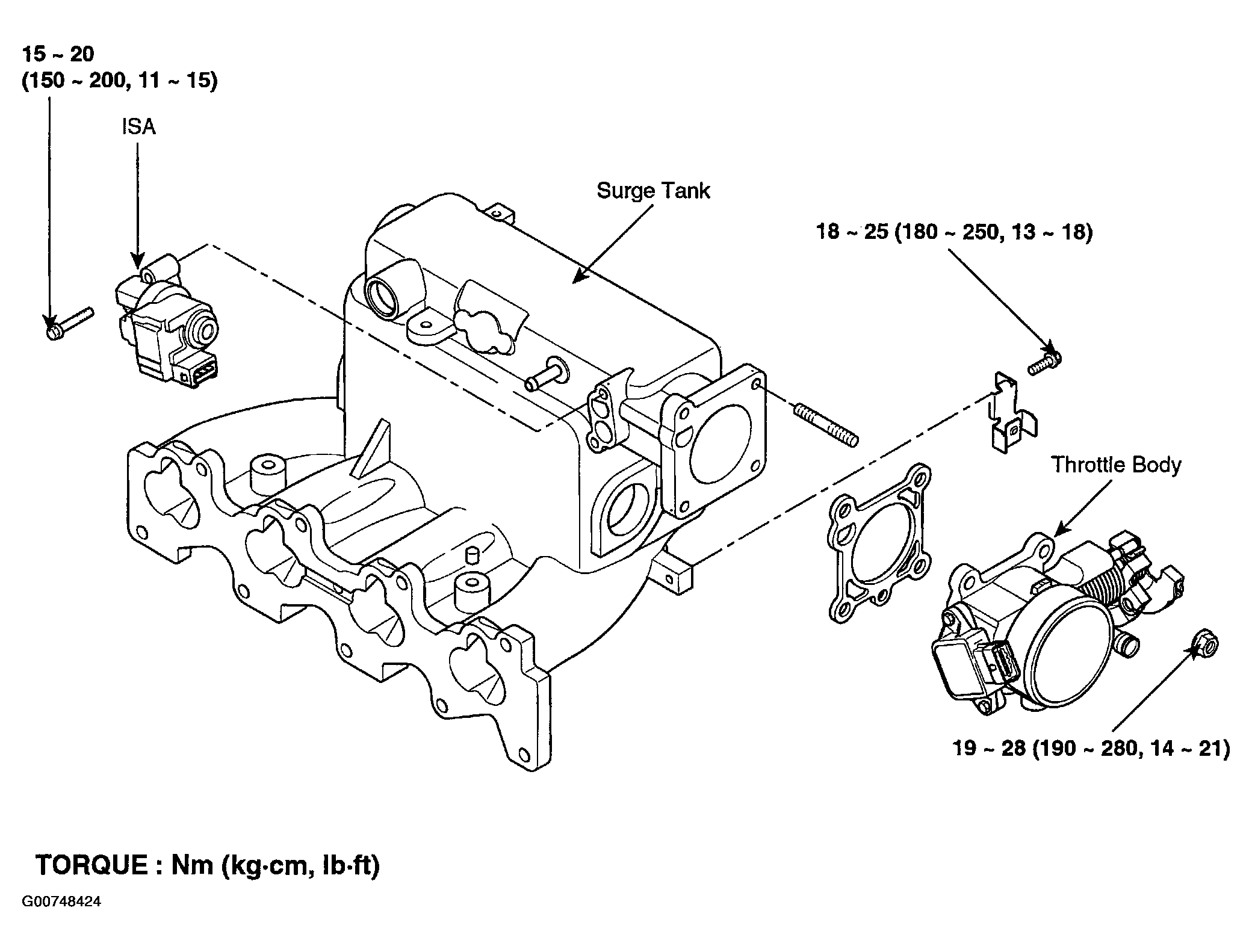

Fig 1: Identifying Throttle Body Components

G00748424

Courtesy of HYUNDAI MOTOR CO.
