5. Check ISCA Resistance

1. Measure resistance of the ISCA opening coil between terminals 1 and 2.
2. Measure resistance of the ISCA closing coil between terminals 2 and 3.

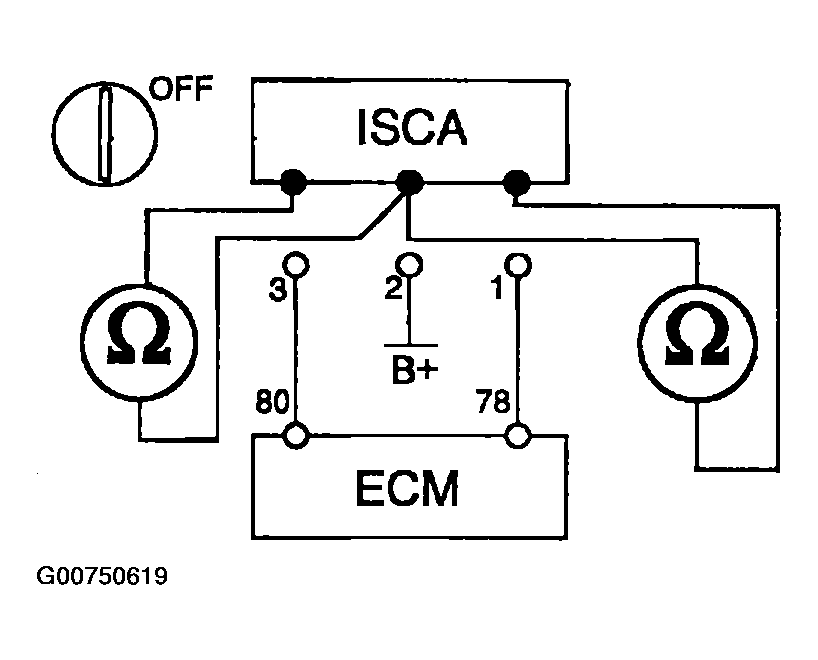

   Fig 1: Measuring ISCA Resistance

   Courtesy of HYUNDAI MOTOR CO.
   • Refer to  Specifications  .

Is each resistance within specification?

Yes: Go to next step.

No: Replace ISCA.
