Home >> Hyundai >> 2004 >> Elantra GLS, Standard >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System >> DTC Trouble Shooting Procedures >> DTC P0506: Idle Control System - Rpm Lower Than Expected >> DTC Detecting Condition

DTC P0506: Idle Control System - Rpm Lower Than Expected: DTC Detecting Condition

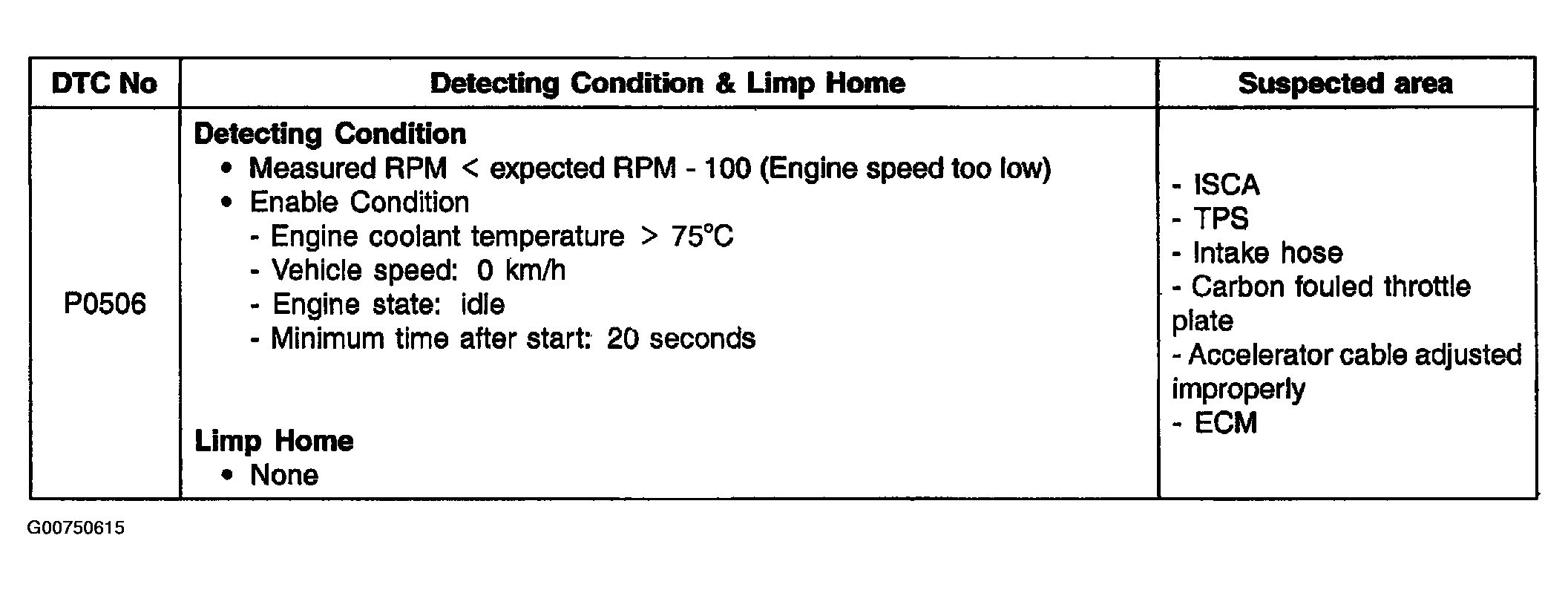

Fig 1: DTC P0506: Detecting Conditions & Probable Causes

G00750615

Courtesy of HYUNDAI MOTOR CO.
