DTC P0456: EVAP Emission Control System - Small Leak Detected (0.5 Mm)
>>
DTC Detecting Condition
DTC P0456: EVAP Emission Control System - Small Leak Detected (0.5 Mm): DTC Detecting Condition

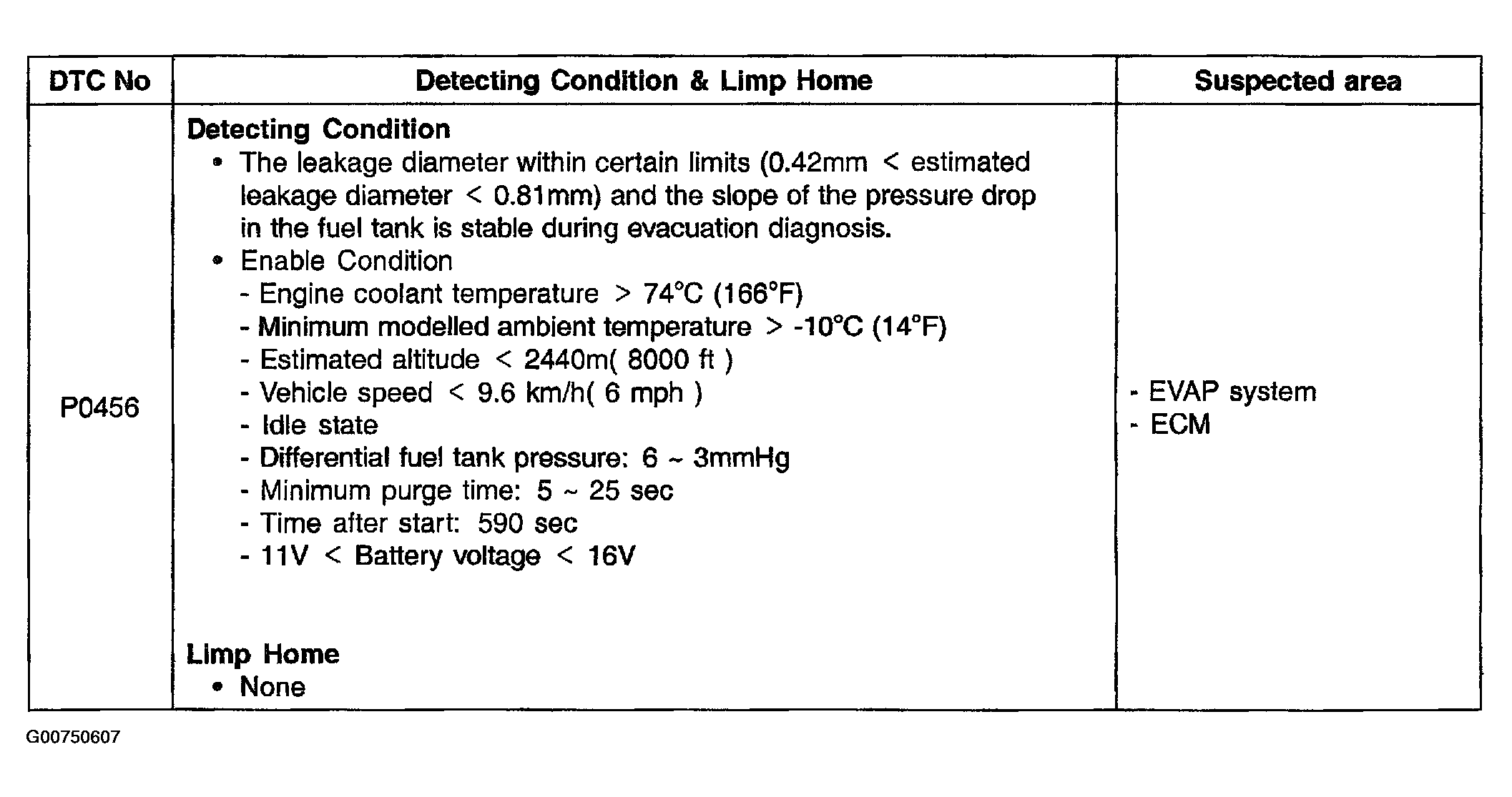

Fig 1: DTC P0456: Detecting Conditions & Probable Causes
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
