DTC P0455: EVAP Emission Control System - Large Leak: DTC Detecting Condition

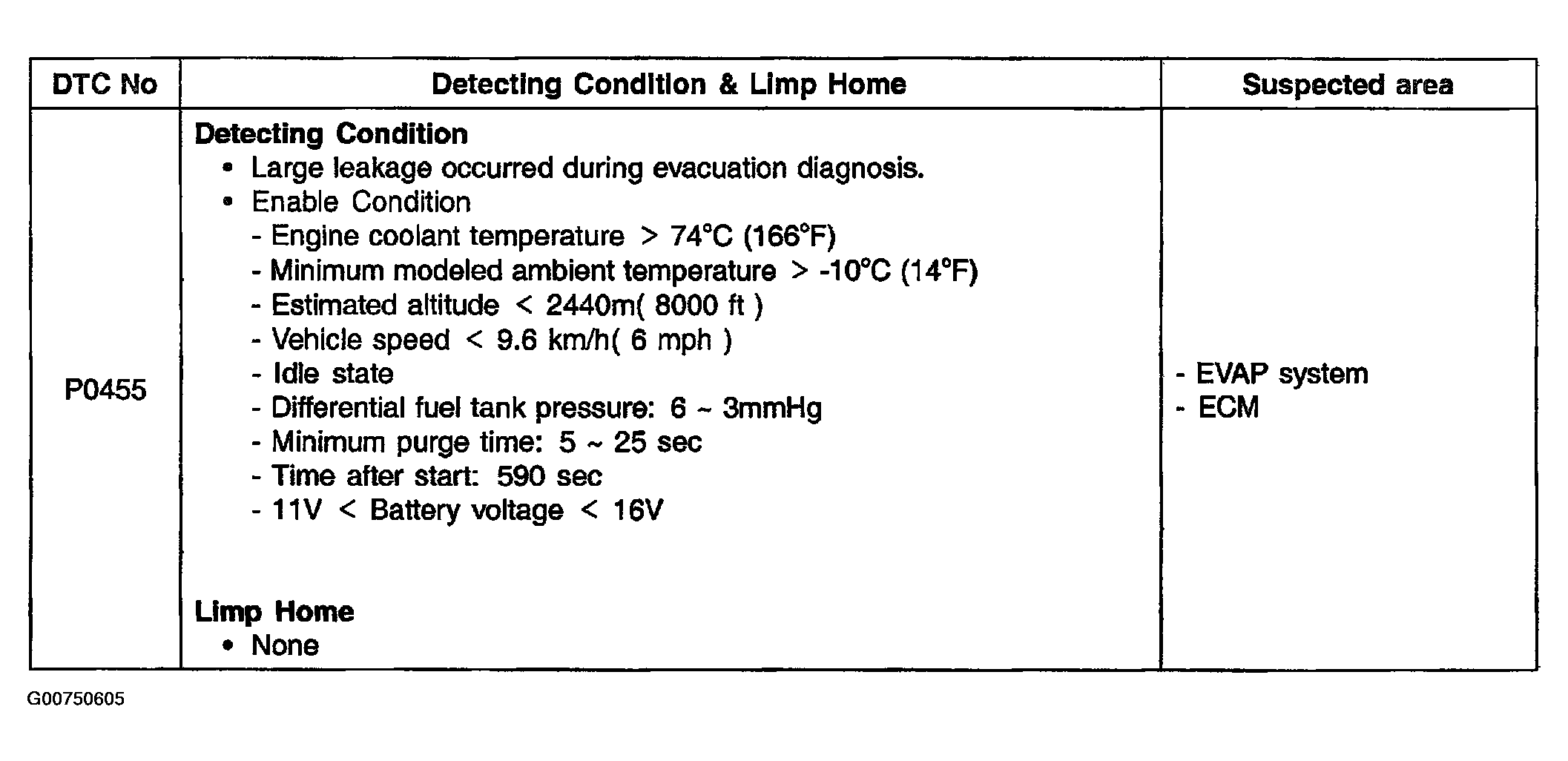

Fig 1: DTC P0455: Detecting Conditions & Probable Causes

G00750605

Courtesy of HYUNDAI MOTOR CO.
