DTC P0449: EVAP Emission Control System Vent Valve/Solenoid Circuit: DTC Detecting Condition

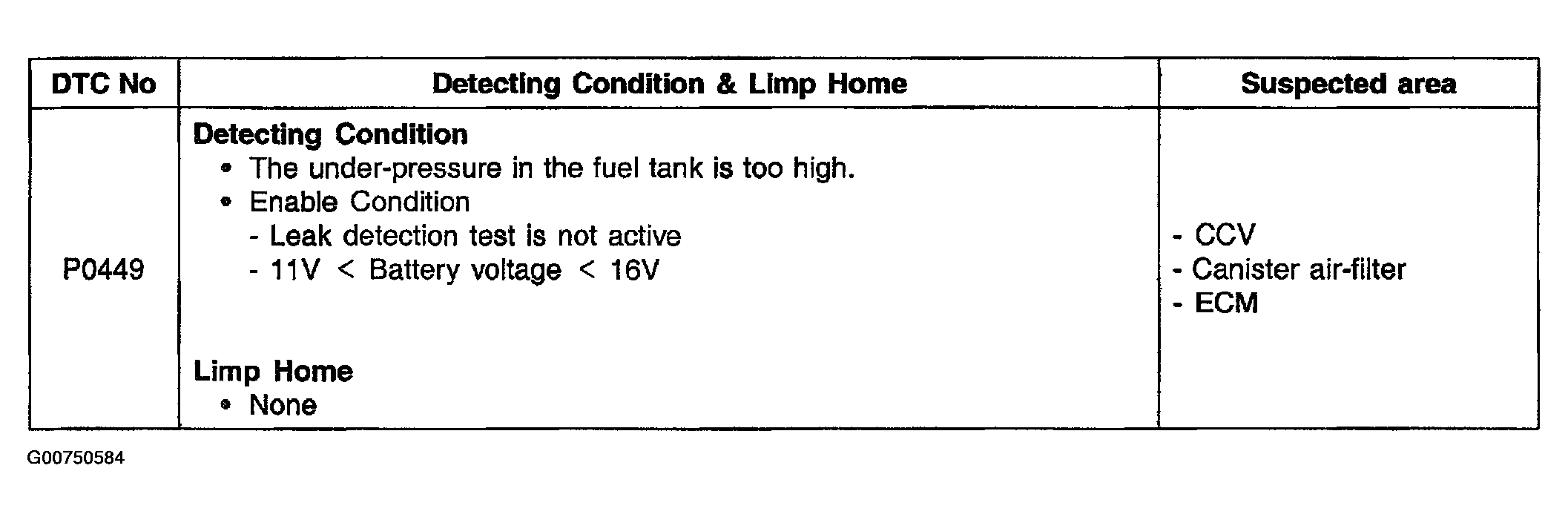

Fig 1: DTC P0449: Detecting Conditions & Probable Causes

G00750584

Courtesy of HYUNDAI MOTOR CO.
