3. Check Power To CMPS

1. Turn ignition switch to OFF position and disconnect CMPS connector.
2. Turn ignition switch to ON position and measure voltage between terminal 1 of the CMPS harness connector and chassis ground.

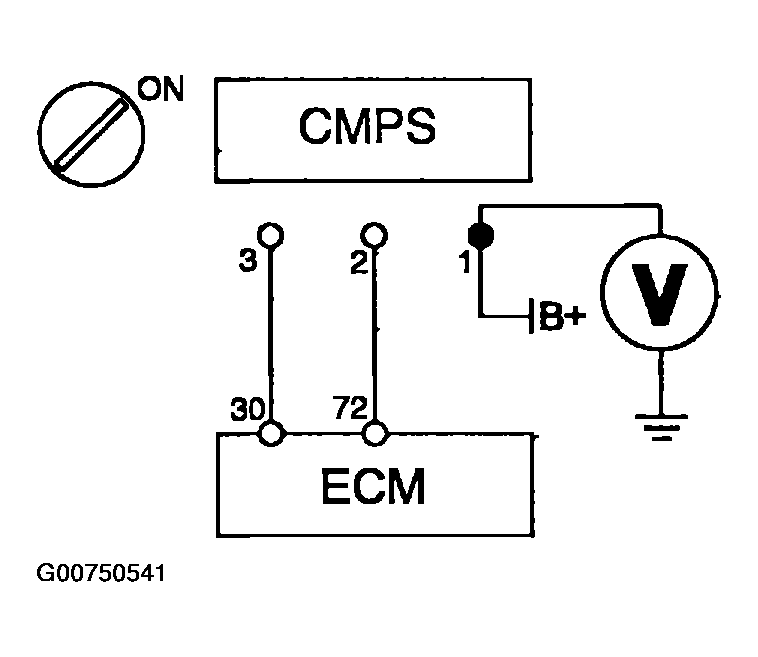

   Fig 1: Checking CMPS Power Supply

   Courtesy of HYUNDAI MOTOR CO.
   • Specifications: approximately B+

Is voltage within specification?

Yes: Go to next step.

No: Repair open or short to chassis ground in harness.
