DTC P0340: Camshaft Position Sensor (CMPS) Circuit Malfunction: DTC Detecting Condition

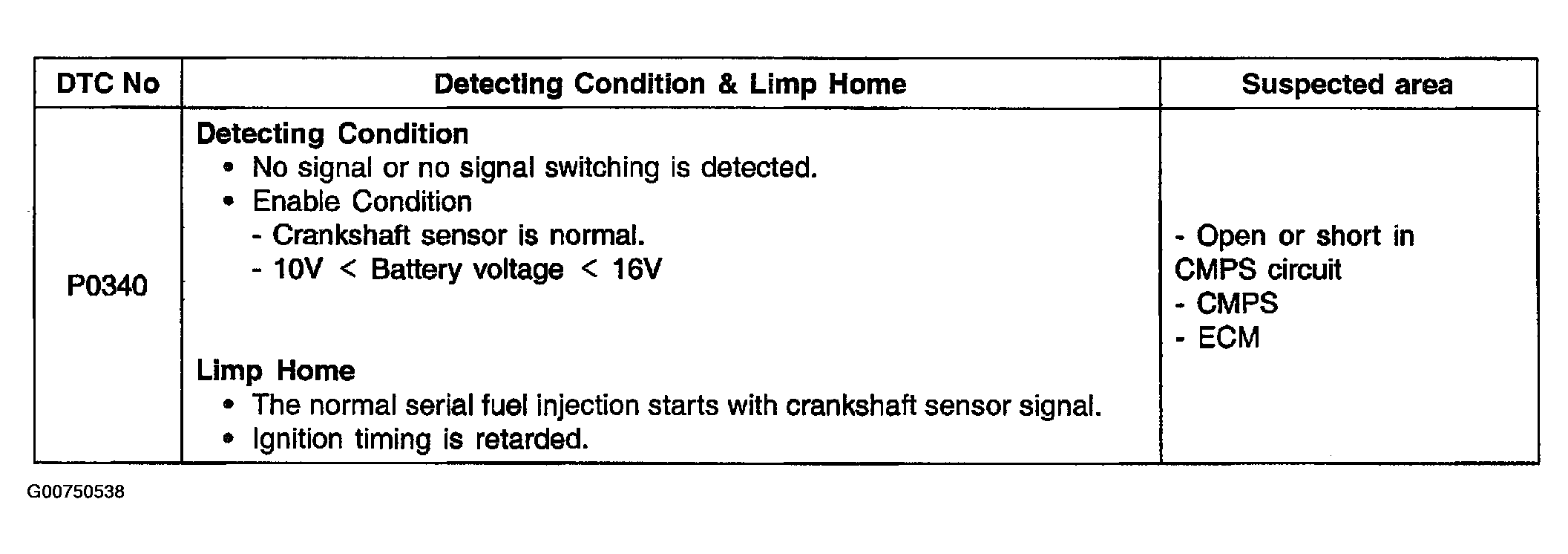

Fig 1: DTC P0340: Detecting Conditions & Probable Causes

G00750538

Courtesy of HYUNDAI MOTOR CO.
