Home >> Hyundai >> 2004 >> Elantra GLS, Standard >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System >> DTC Trouble Shooting Procedures >> DTC P0325: Knock Sensor (KS) Circuit Malfunction >> DTC Detecting Condition

DTC P0325: Knock Sensor (KS) Circuit Malfunction: DTC Detecting Condition

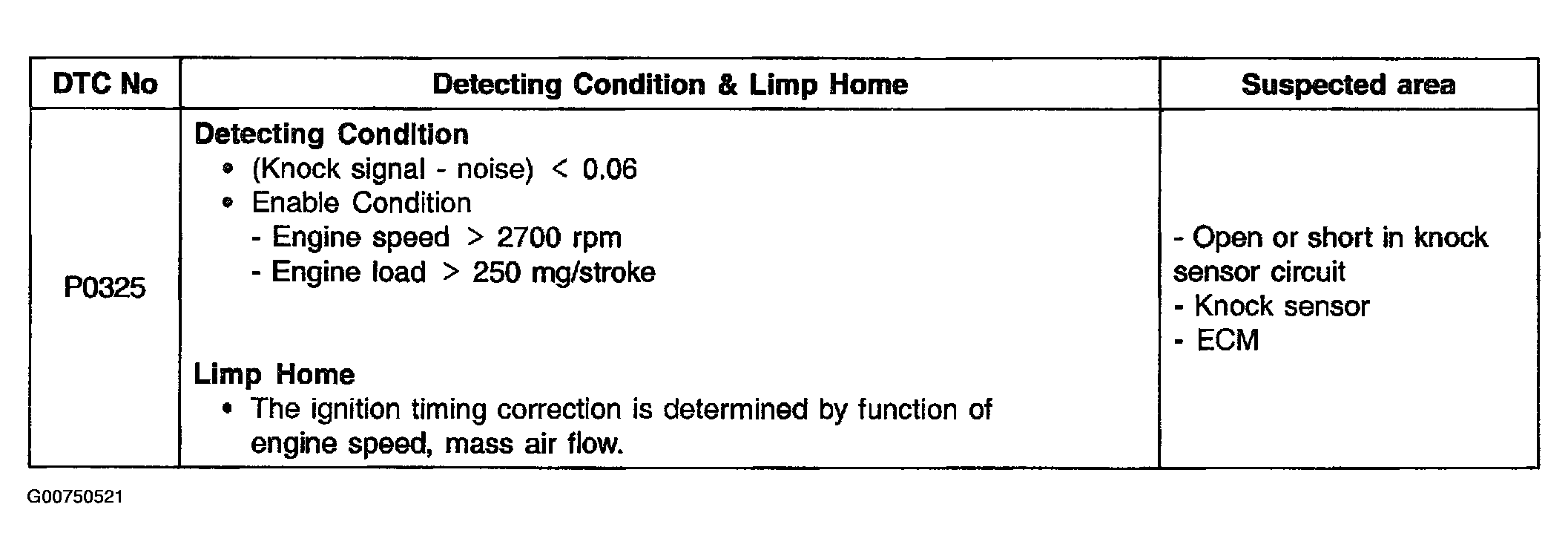

Fig 1: DTC P0325: Detecting Conditions & Probable Causes

G00750521

Courtesy of HYUNDAI MOTOR CO.
