Home >> Hyundai >> 2004 >> Elantra GLS, Standard >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System >> DTC Trouble Shooting Procedures >> DTC P0301: Cylinder 1 - Misfire Detected >> DTC Detecting Condition

DTC P0301: Cylinder 1 - Misfire Detected: DTC Detecting Condition

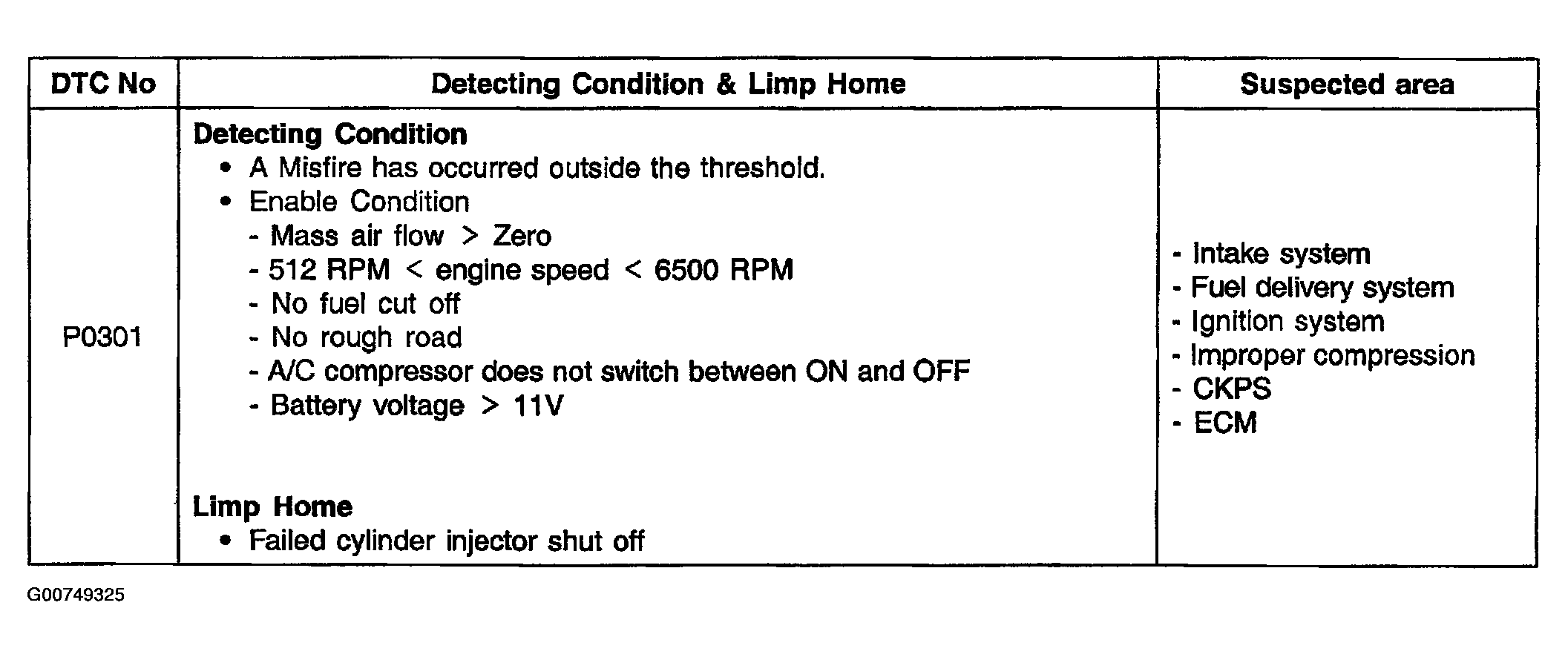

Fig 1: DTC P0301: Detecting Conditions & Probable Causes

G00749325

Courtesy of HYUNDAI MOTOR CO.
