DTC P0267: Cylinder 3 - Injector Circuit Low Input: DTC Detecting Condition

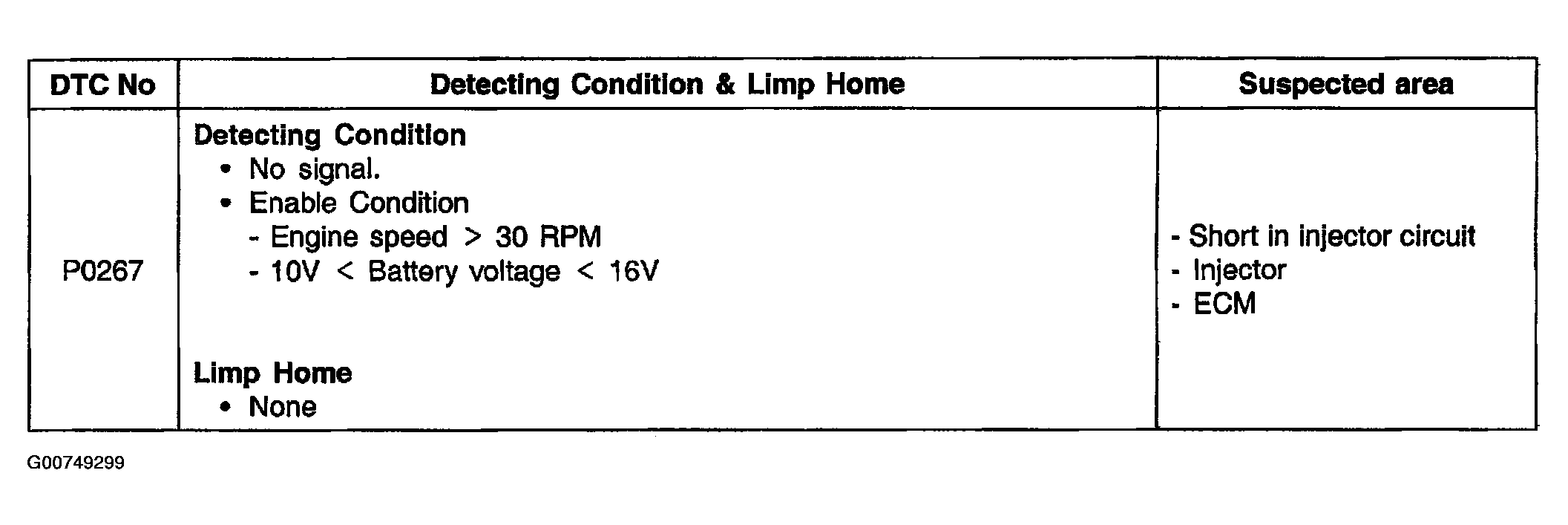

Fig 1: DTC P0267: Detecting Conditions & Probable Causes

G00749299

Courtesy of HYUNDAI MOTOR CO.
