Home >> Hyundai >> 2004 >> Elantra GLS, Standard >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System >> DTC Trouble Shooting Procedures >> DTC P0261: Cylinder 1 - Injector Circuit Low Input >> Signal Waveform

Signal Waveform

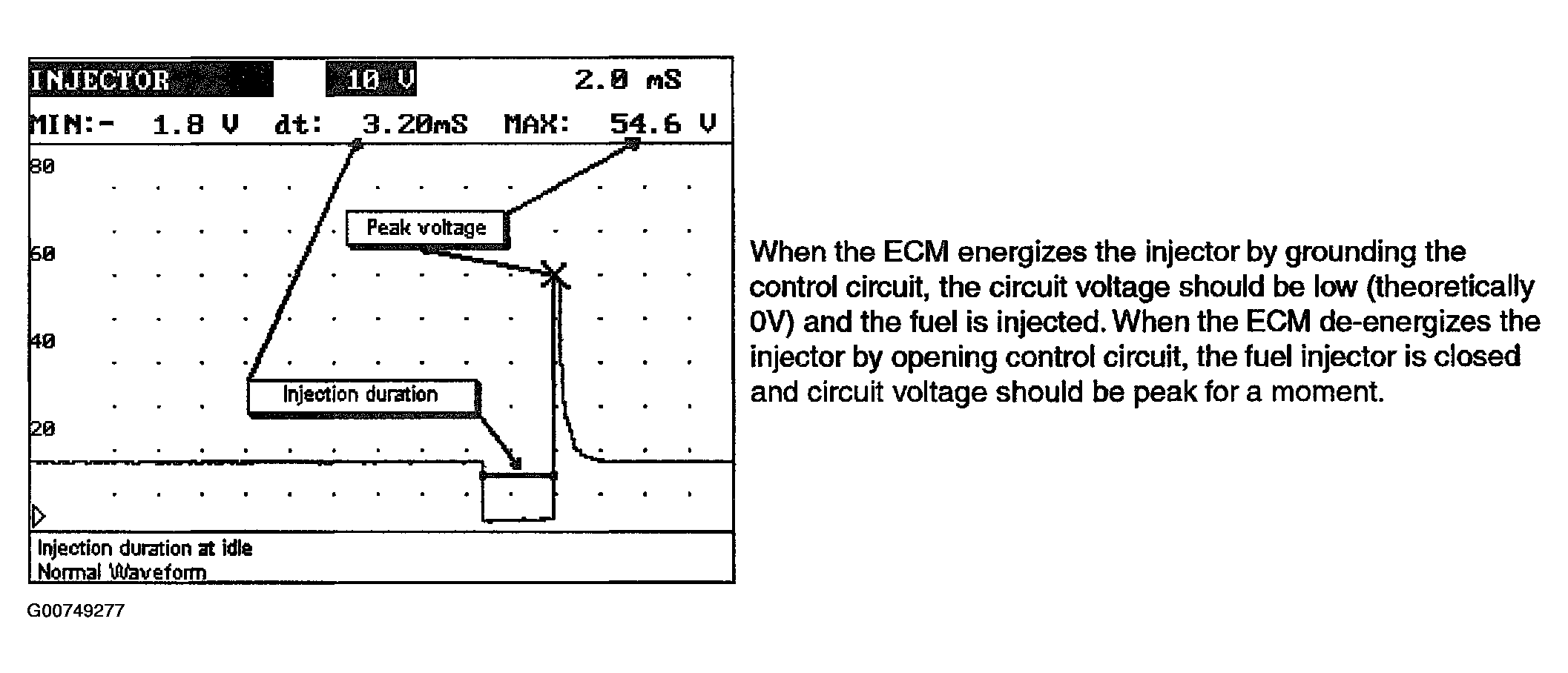

Fig 1: Fuel Injector Signal Waveform
G00749277Courtesy of HYUNDAI MOTOR CO.
