DTC P0171: Fuel Trim Malfunction - System Too Lean (Upstream): DTC Detecting Condition

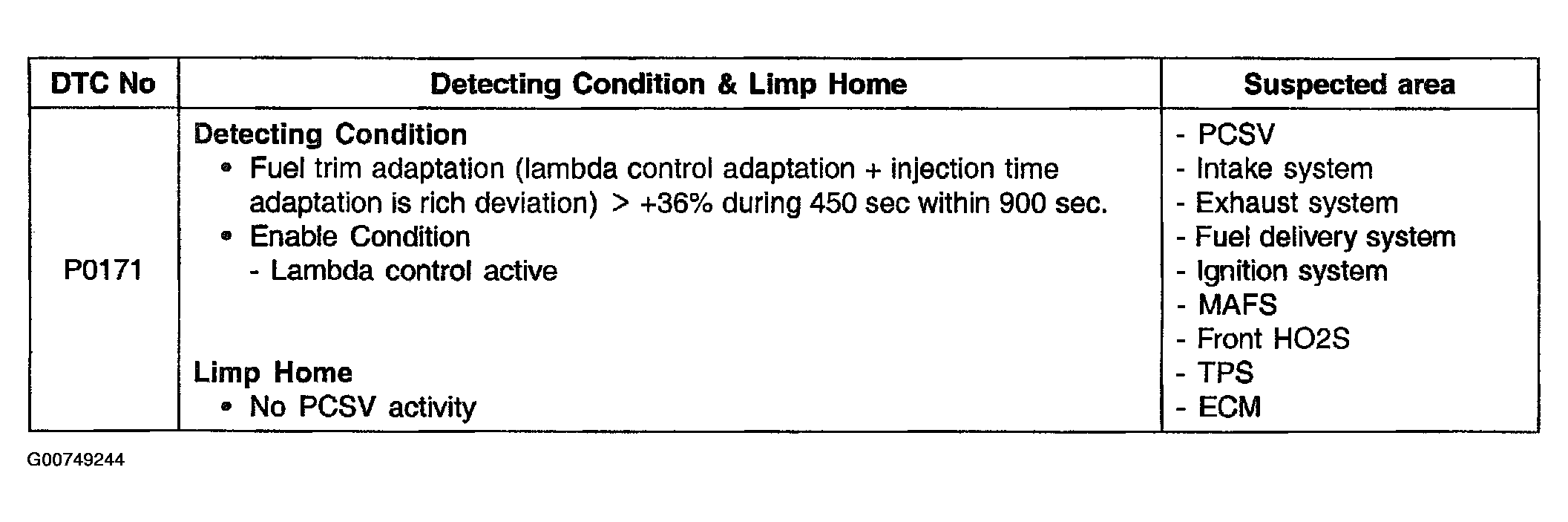

Fig 1: DTC P0171: Detecting Conditions & Probable Causes

G00749244

Courtesy of HYUNDAI MOTOR CO.
