Home >> Hyundai >> 2004 >> Elantra GLS, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Anti-Theft Systems >> Immobilizer Control System >> Immobilizer Control System >> Troubleshooting >> Diagnostic Trouble Code Chart >> DTC P1805: Communication Failure >> DTC Detecting Condition

DTC P1805: Communication Failure: DTC Detecting Condition

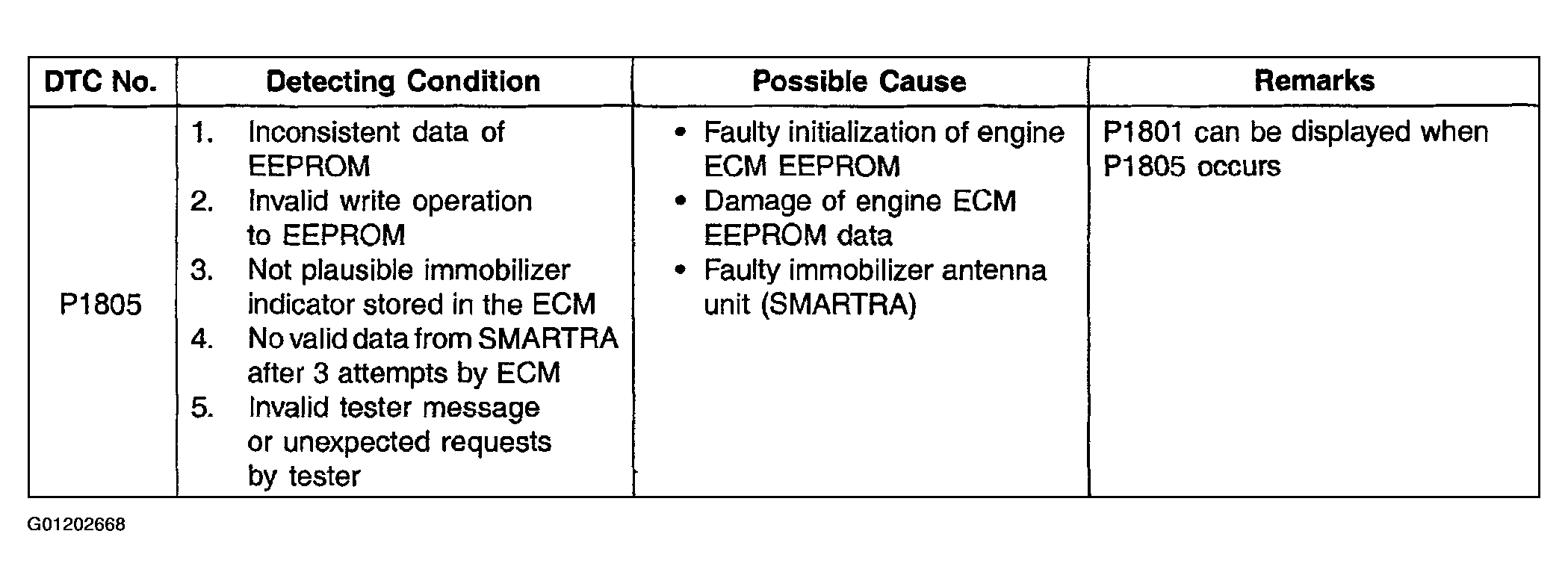

Fig 1: DTC P1805 Detecting Condition & Possible Cause Table

G01202668

Courtesy of HYUNDAI MOTOR CO.
