4. Check For Short To Ground In Harness

1. Disconnect ECM connector.
2. Measure resistance between terminal 6 of HO2S harness connector and chassis ground.

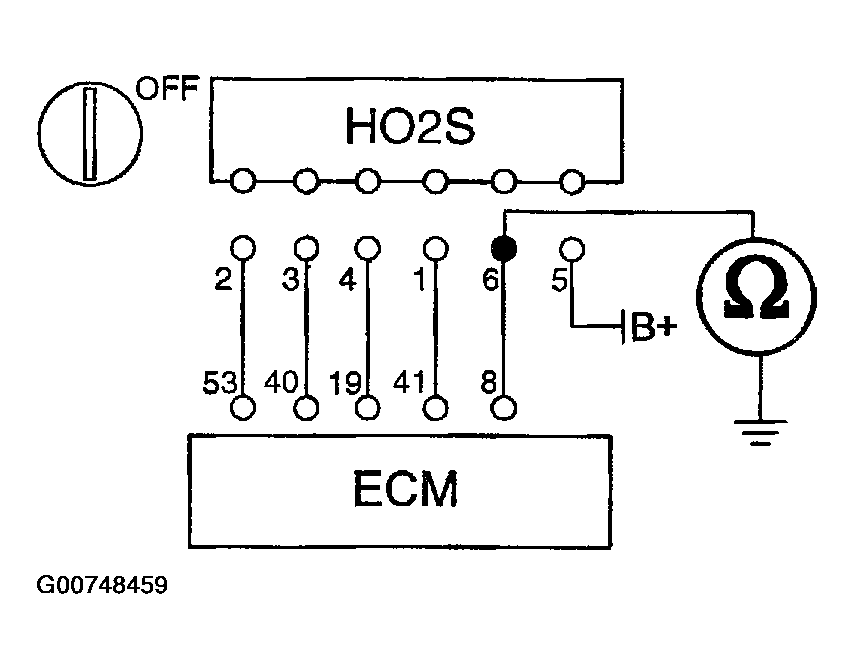

   Fig 1: Checking HO2S Harness For Short To Ground

   Courtesy of HYUNDAI MOTOR CO.
   • Specification : infinite

Does resistance indicate open?

Yes: Go to next step.

No: Repair short to chassis ground in harness.
