Sectional View

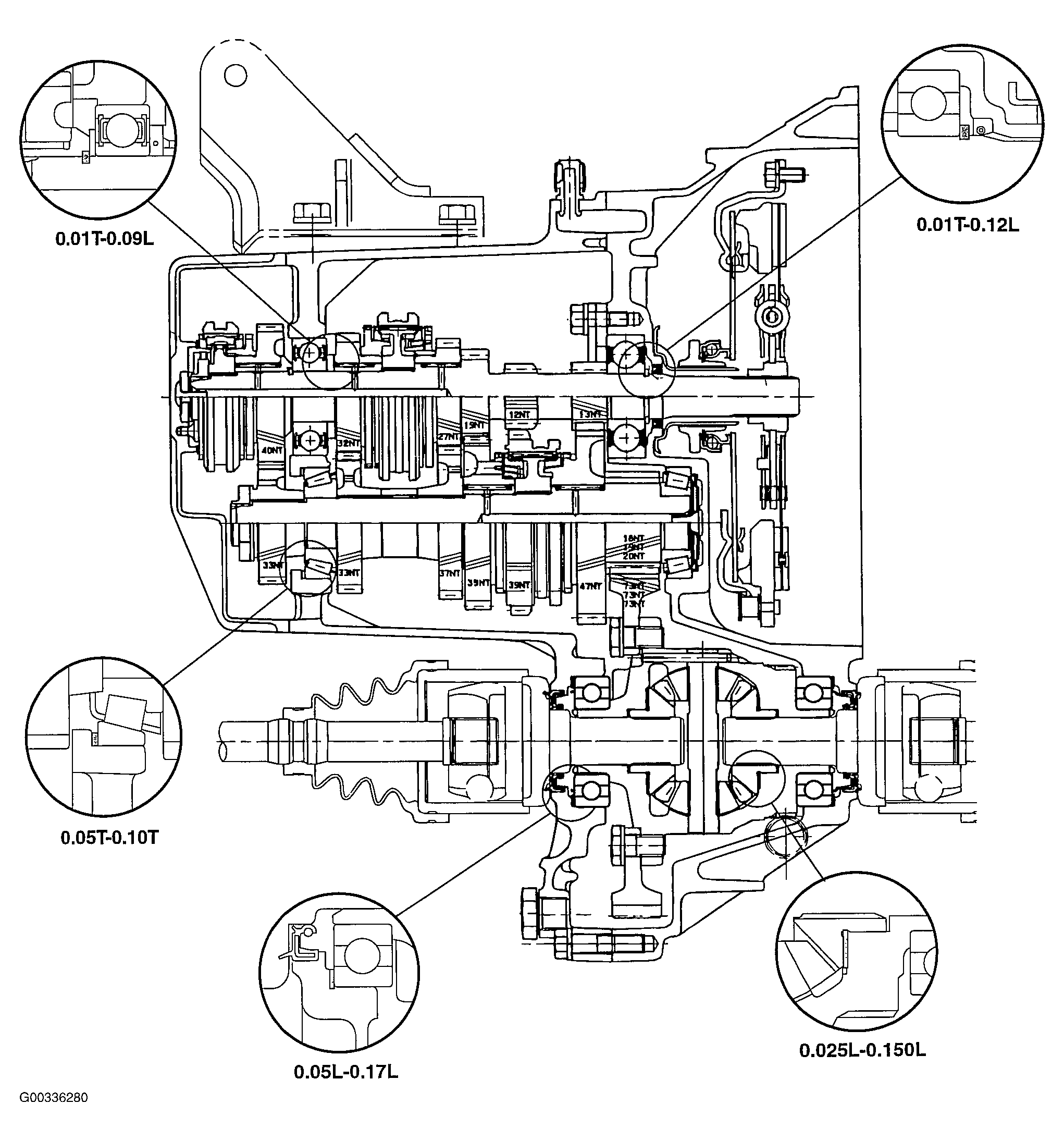

Fig 1: Locating Manual Transaxle Internal Bearings

G00336280

Courtesy of HYUNDAI MOTOR CO.
