A/C Switch/Defogger Switch Connector & Blower Switch Connector End Views

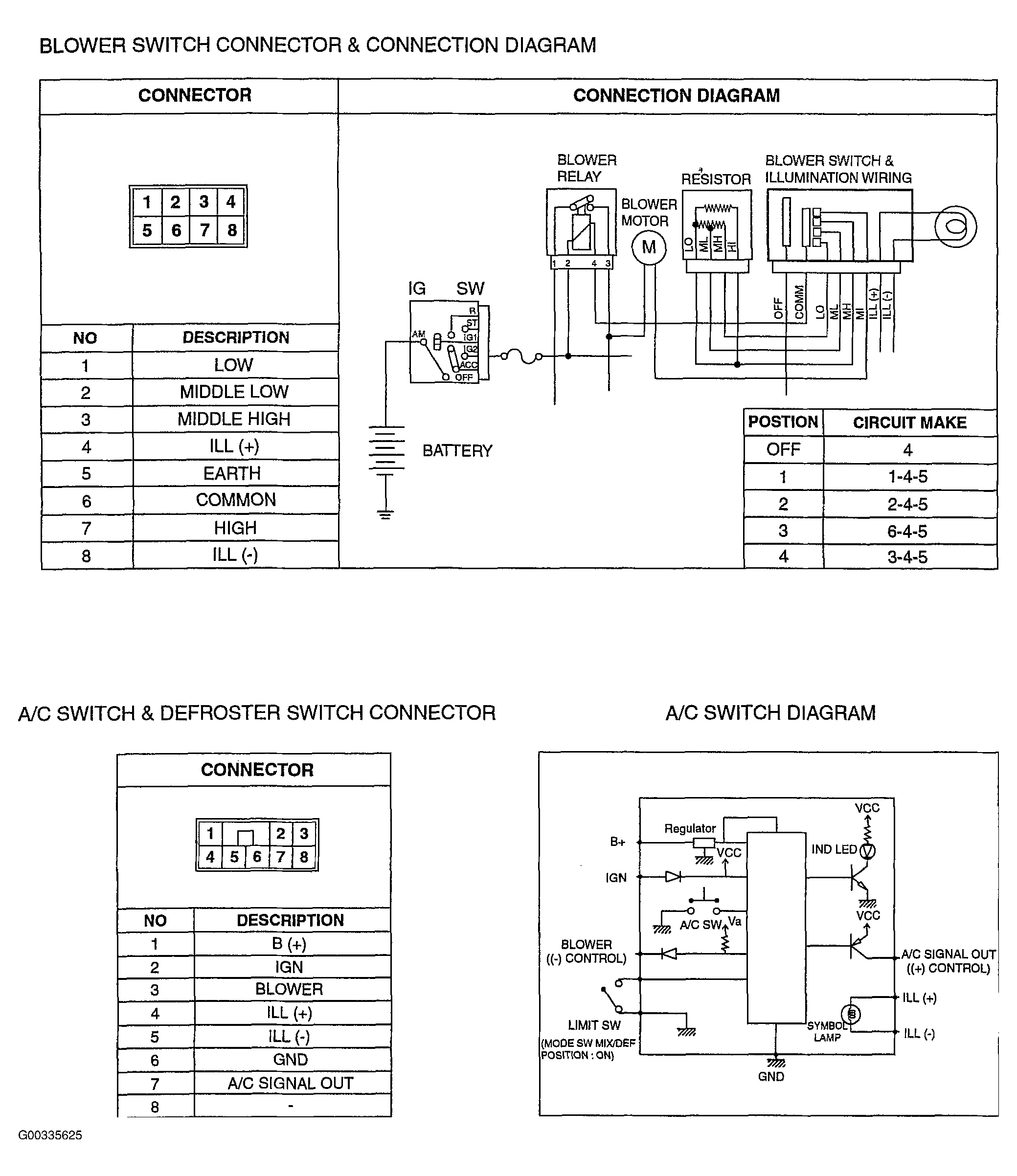

Fig 1: A/C Switch/Defogger Switch Connector & Blower Switch Connector End Views

G00335625

Courtesy of HYUNDAI MOTOR AMERICA
