Section 1 (Automatic Transaxle System)
>>
Inspection Chart For Trouble Symptoms
>>
Elements In Use In Each Gear
Elements In Use In Each Gear
WARNING:
This page is about a different variant/trim than selected.

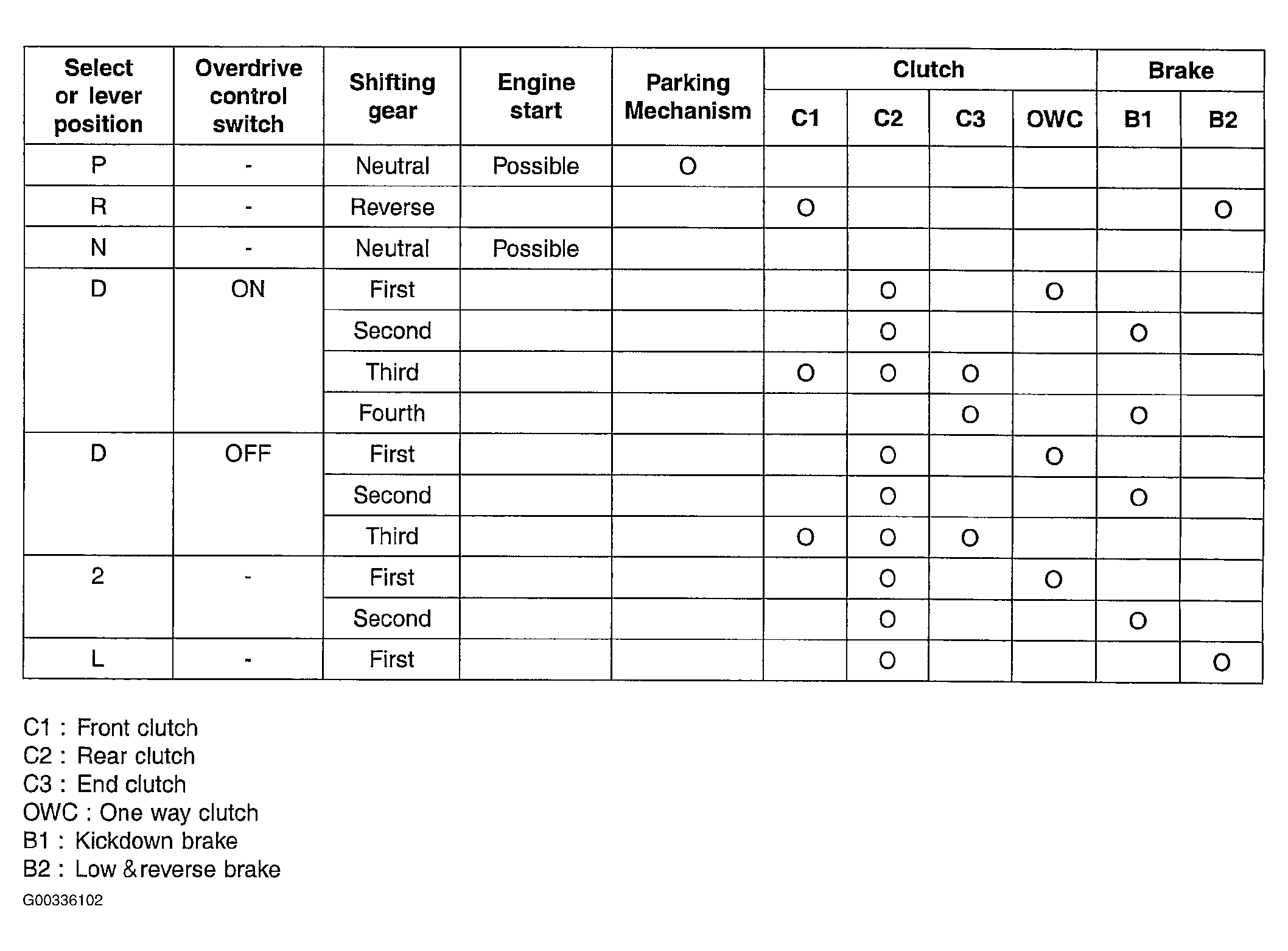

Fig 1: Elements In Use In Each Gear
Courtesy of HYUNDAI MOTOR CO.
