Control Circuit Inspection

  1. Ignition "OFF"
  2. Disconnect DM-TL connector.
  3. Ignition "ON" & Engine "OFF"
  4. Measure voltage between terminal 2 of DM-TL harness connector and chassis ground.

    Specification: approximately 3.7V

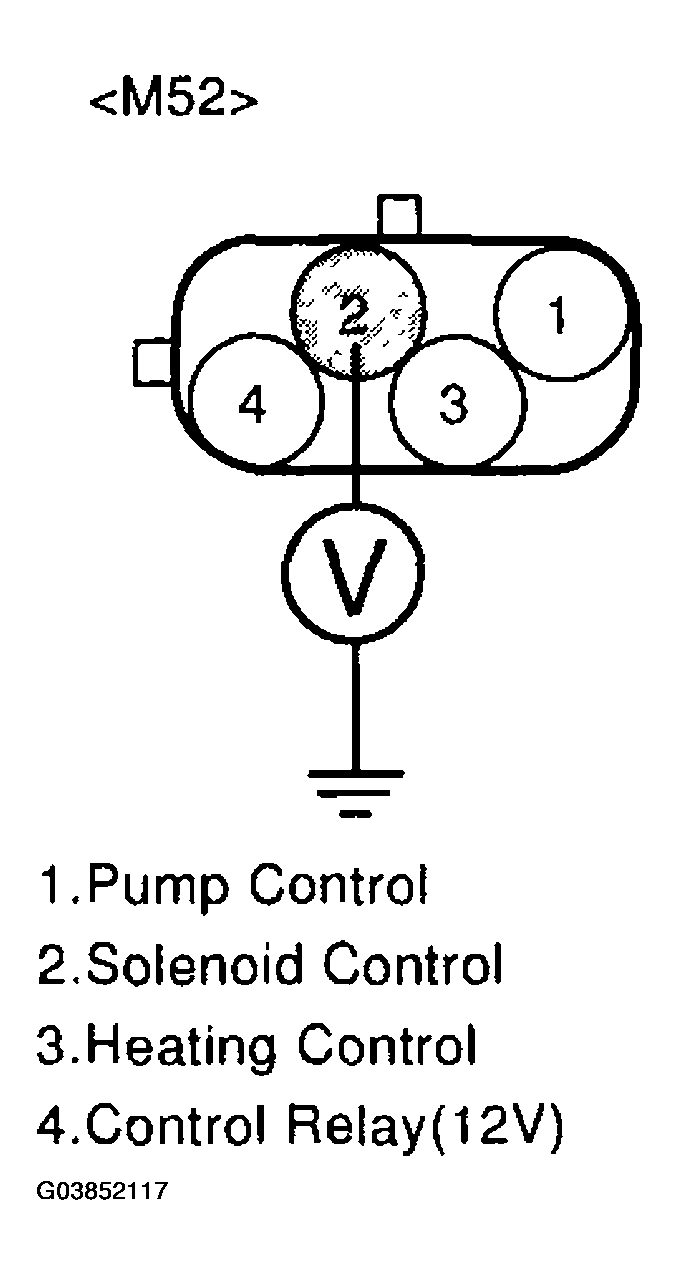

    Fig 1: Measuring Voltage Between Terminal 2 Of DM-TL Harness Connector And Chassis Ground
    G03852117Courtesy of HYUNDAI MOTOR CO.
  5. Is measure voltage within Specification?

    YES

    NO
