Schematic Diagram

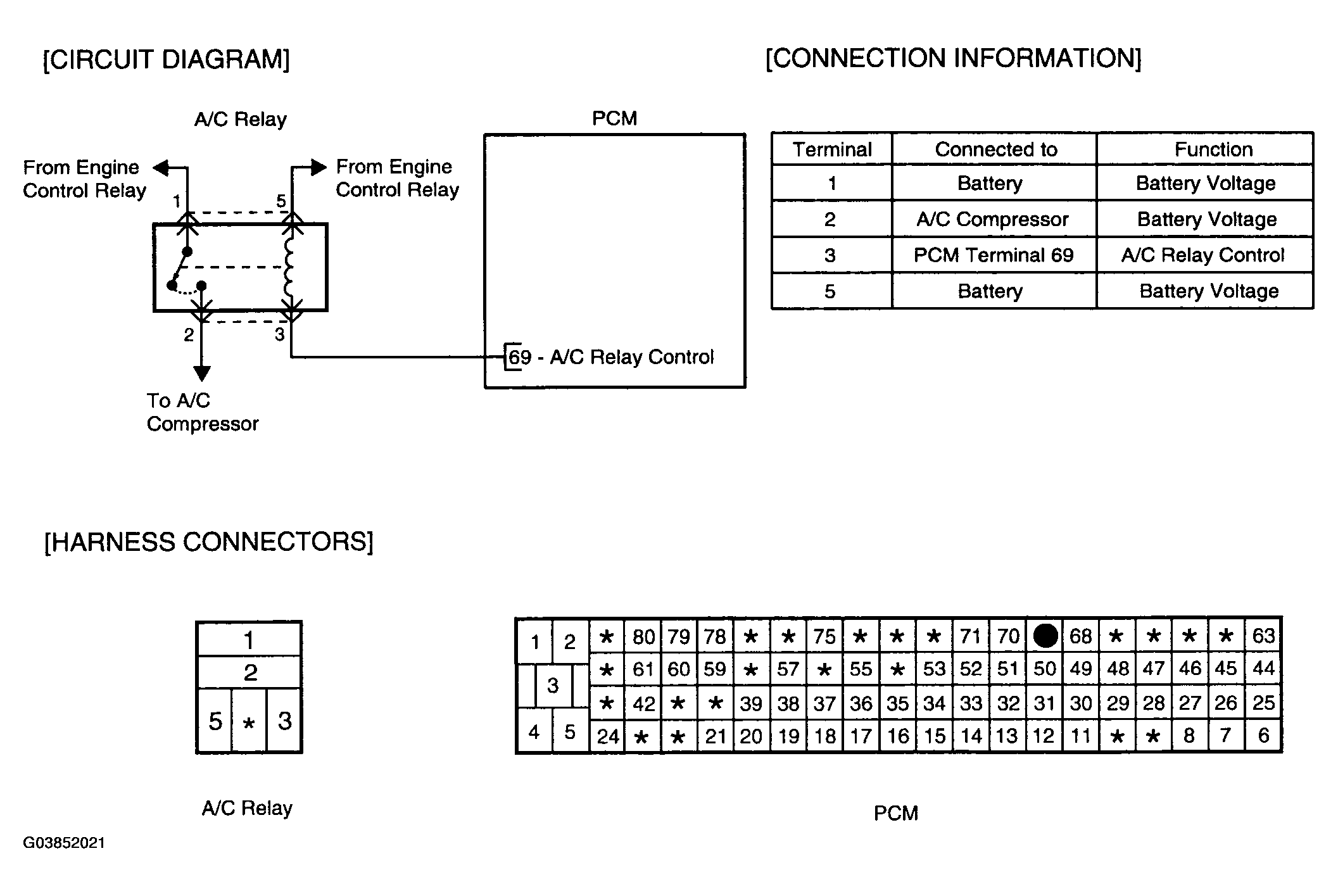

Fig 1: A/C Clutch Relay Schematic Diagram

G03852021

Courtesy of HYUNDAI MOTOR CO.
