Component Location

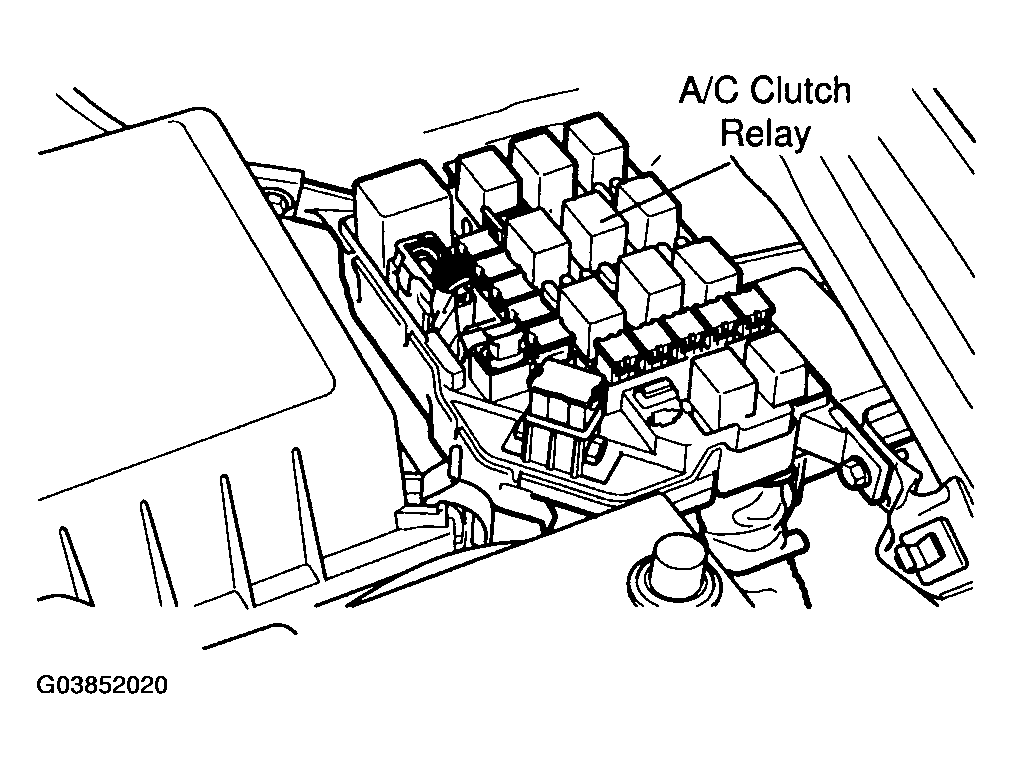

Fig 1: Identifying A/C Clutch Relay Location

G03852020

Courtesy of HYUNDAI MOTOR CO.
