Schematic Diagram

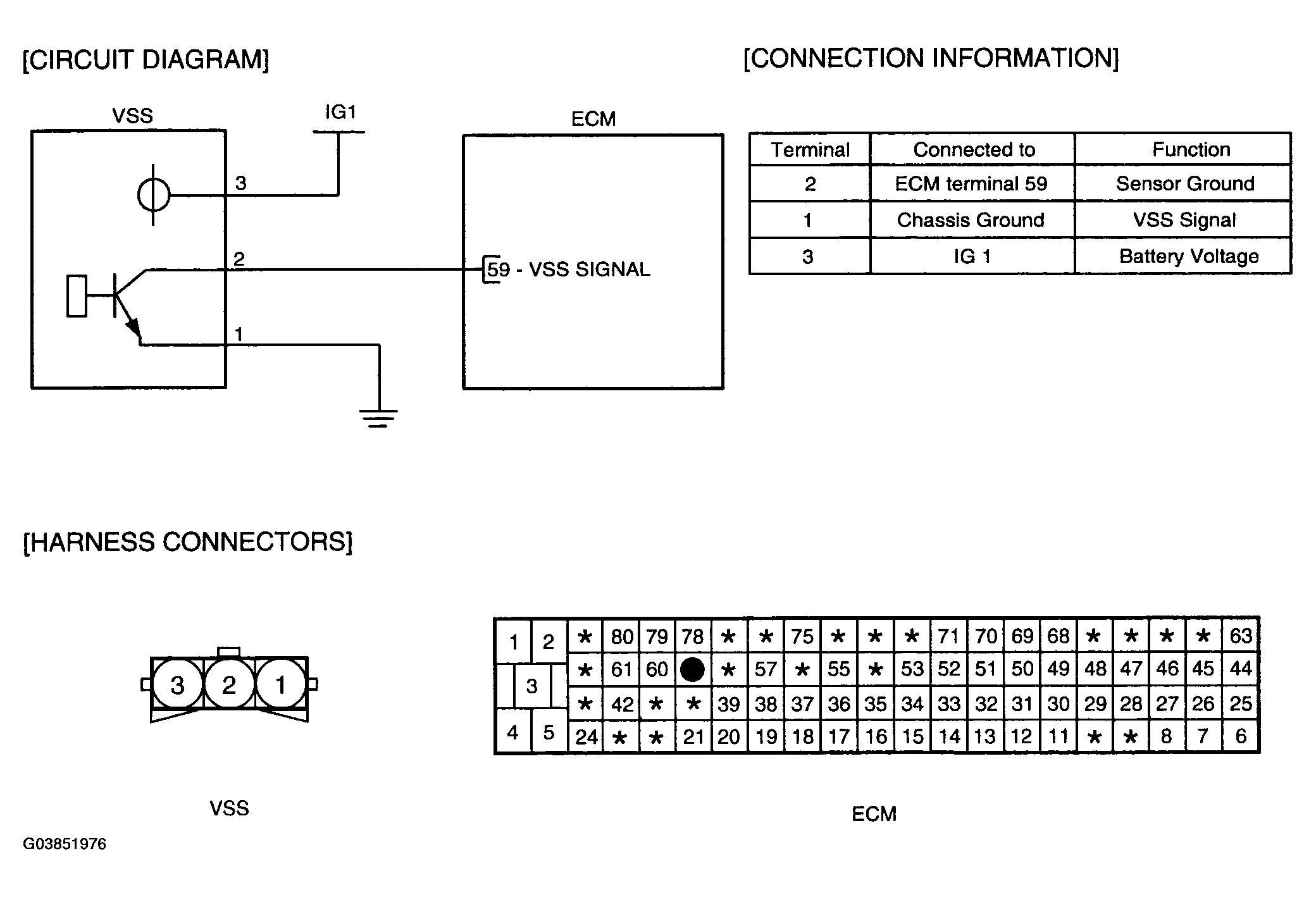

Fig 1: Vehicle Speed Sensor Schematic Diagram

G03851976

Courtesy of HYUNDAI MOTOR CO.
