Signal Circuit Inspection

  1. Check for CKPS signal
    1. Engine "ON"
    2. Monitor WAVE FORM at the terminal 1 of CKPS.

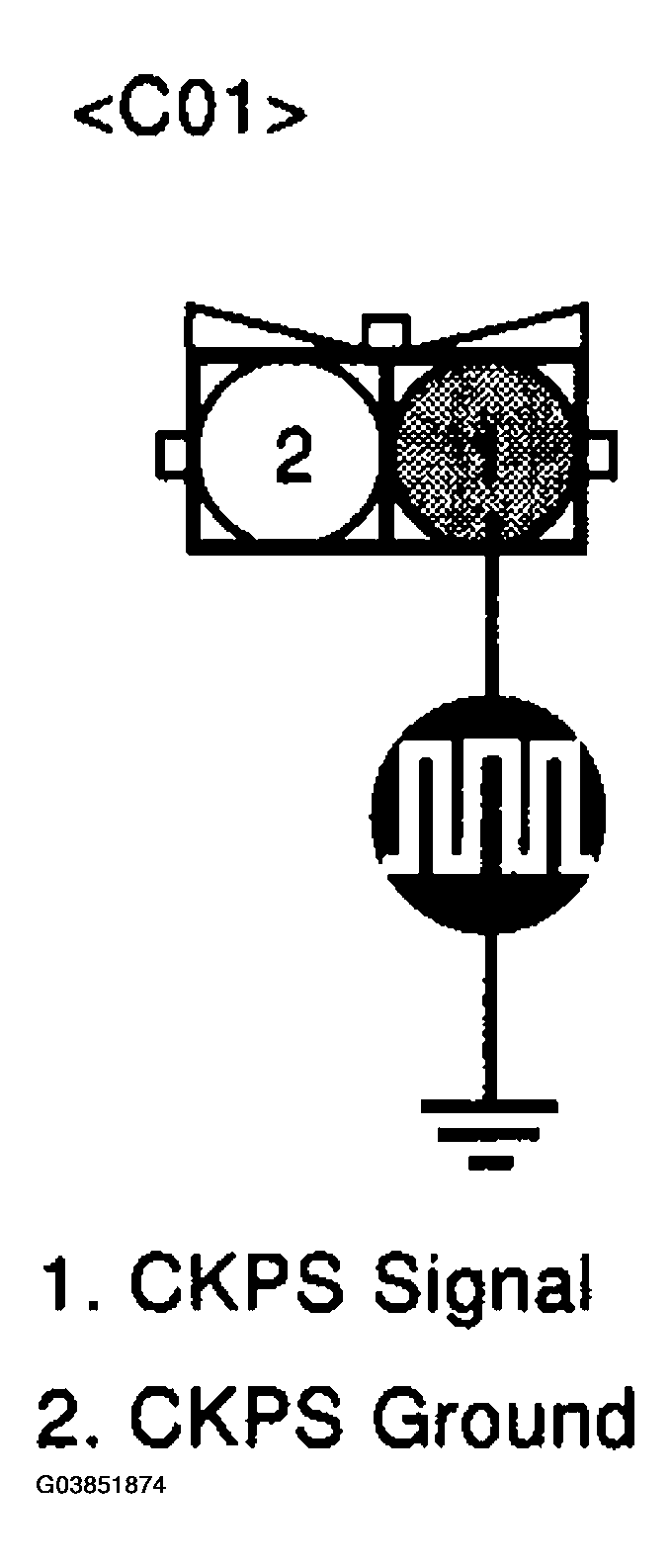

      Fig 1: Monitoring WAVE FORM At Terminal 1 Of CKPS
      G03851874Courtesy of HYUNDAI MOTOR CO.
    3. Is the wave form displayed normally?
