Schematic Diagram

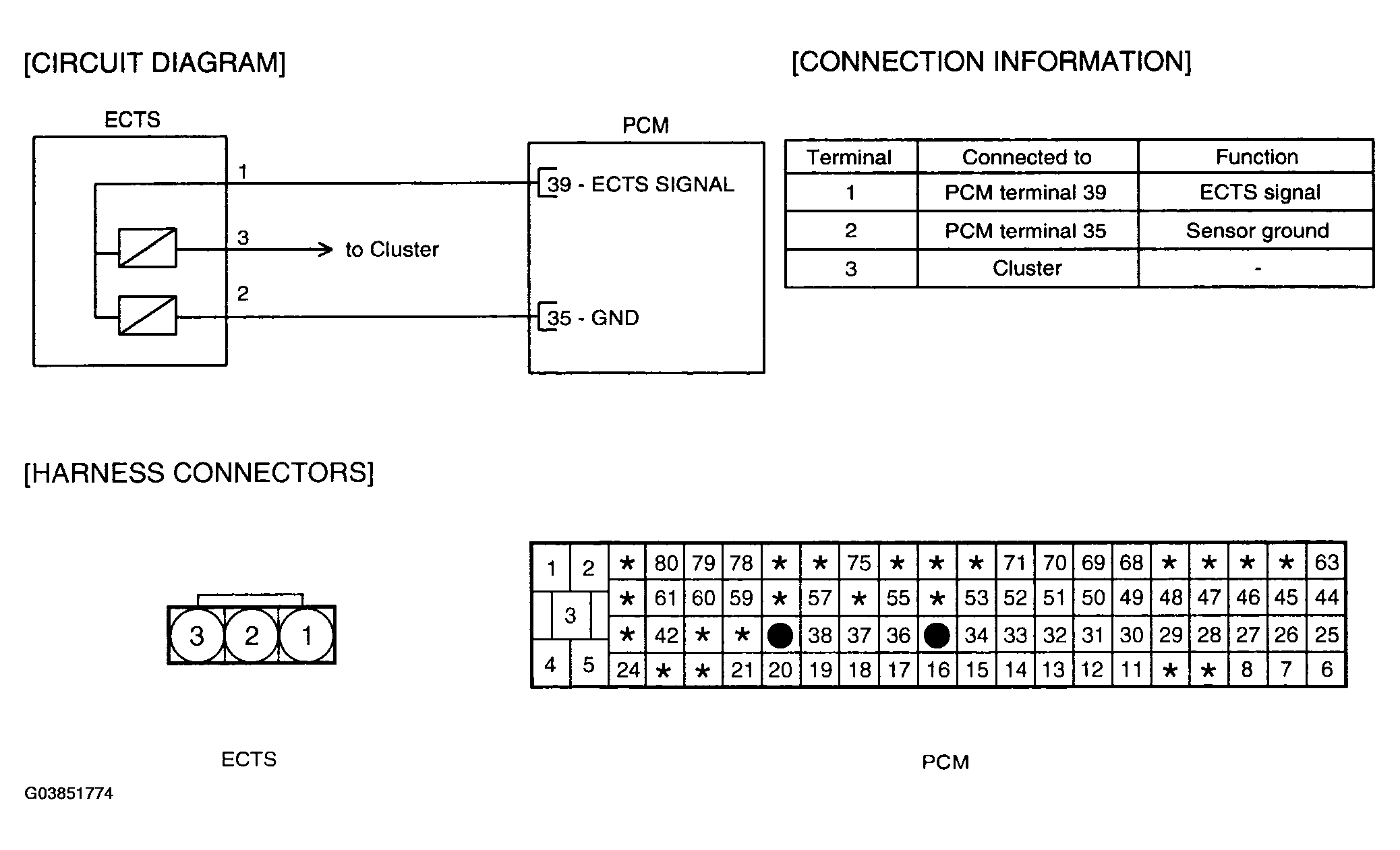

Fig 1: Schematic Diagram - DTC P0125 Insufficient Coolant Temperature For Closed Loop Fuel Control

G03851774

Courtesy of HYUNDAI MOTOR CO.
