Signal Circuit Inspection

Check for short to ground in harness
1. Ignition "OFF"
2. Disconnect ECT sensor connector and PCM connector.
3. Ignition "ON" & Engine "OFF"
4. Measure resistance between terminal 1 of sensor harness connector and chassis ground.
5. Measure resistance between terminal 1 and 2 of sensor harness connector.
  Specification: infinite

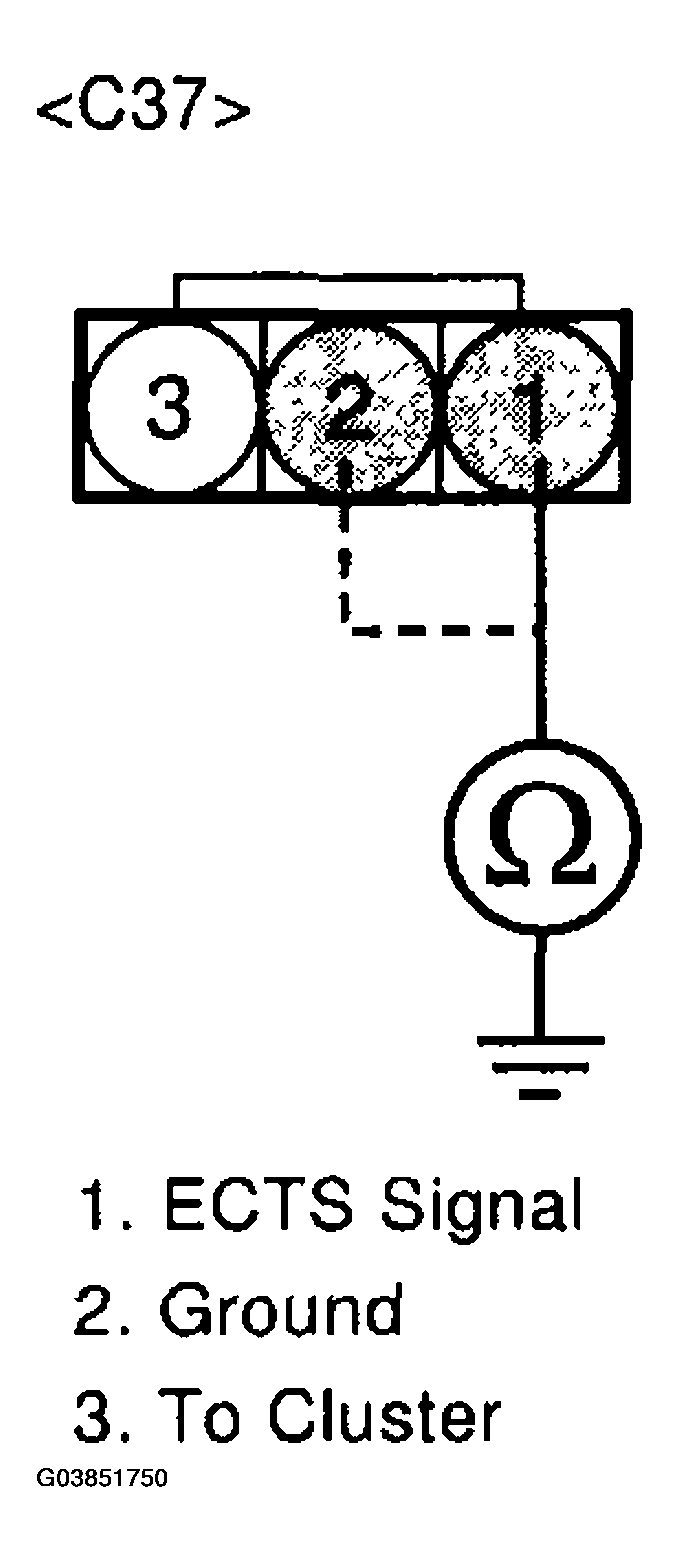

  Fig 1: Measuring Resistance Between Terminal 1 And 2 Of Sensor Harness Connector
  Courtesy of HYUNDAI MOTOR CO.
6. Is measure resistance within Specification?
  YES
  - Go to "COMPONENT INSPECTION " procedure.
  NO
  - Short circuit between ECTS signal circuit and ground circuit.
  - Short chassis ground between ECTS harness connector and PCM harness connector.
  - Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure
