Removal & Installation

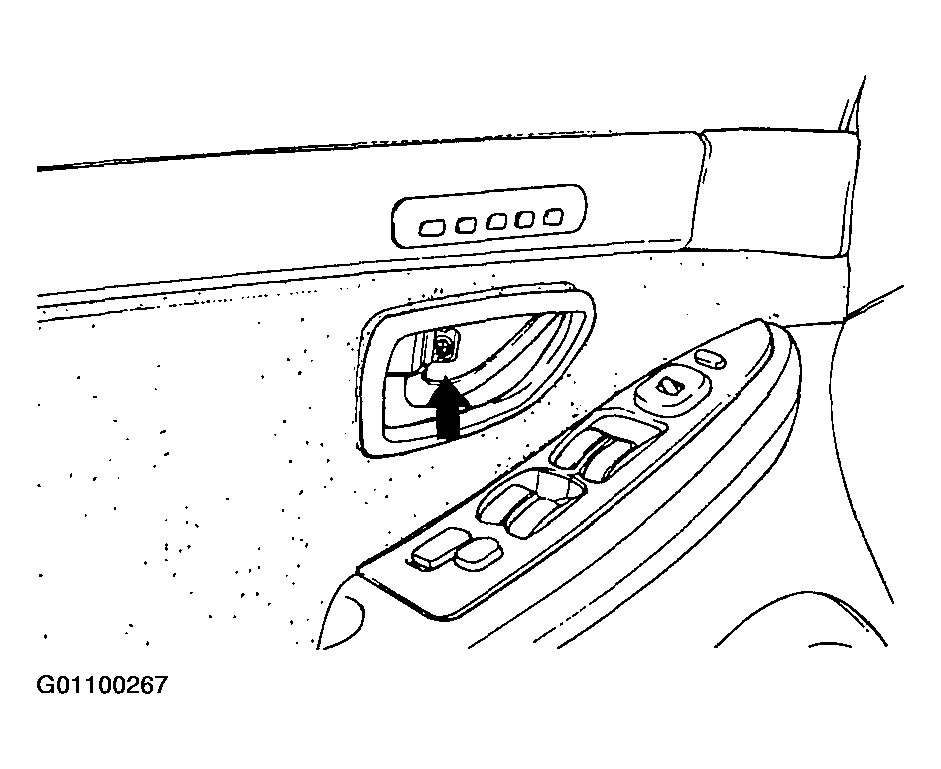

Remove the front door inside handle housing.

Fig 1: Removing Door Inside Handle Housing
Courtesy of HYUNDAI MOTOR CO.

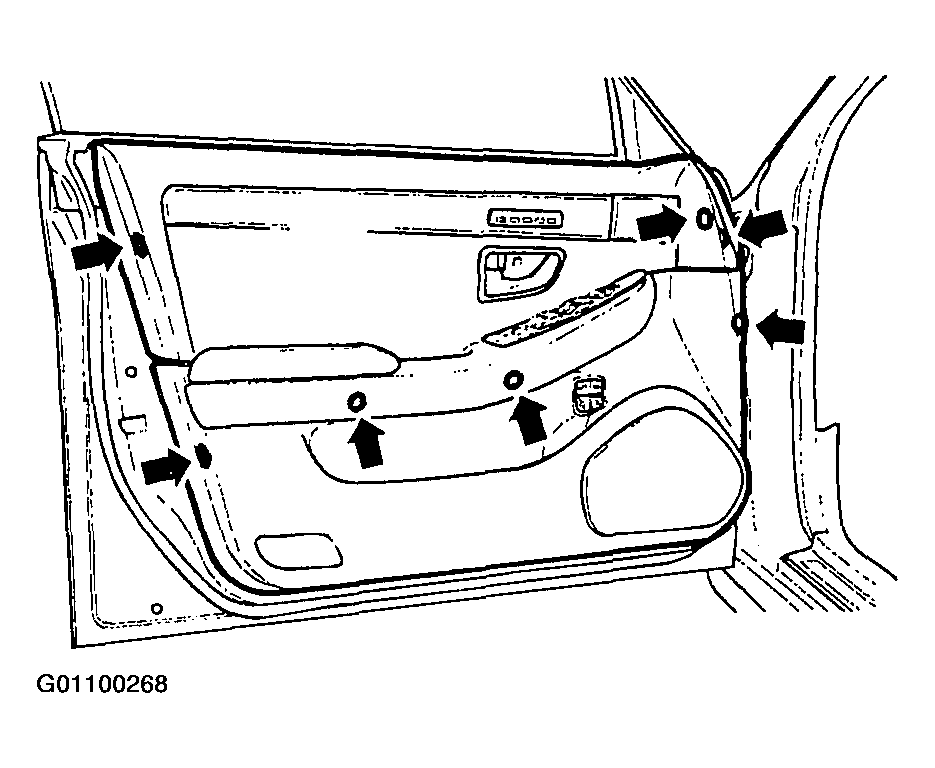

Remove the screws holding the door trim panel.

Fig 2: Removing Door Panel Holding Screws
Courtesy of HYUNDAI MOTOR CO.
Insert a trim panel remover between the trim fasteners and the door trim panel to pry off.
Disconnect the wire connectors from the front door.

Fig 3: Releasing Door Trim Panel Fasteners
Courtesy of HYUNDAI MOTOR CO.

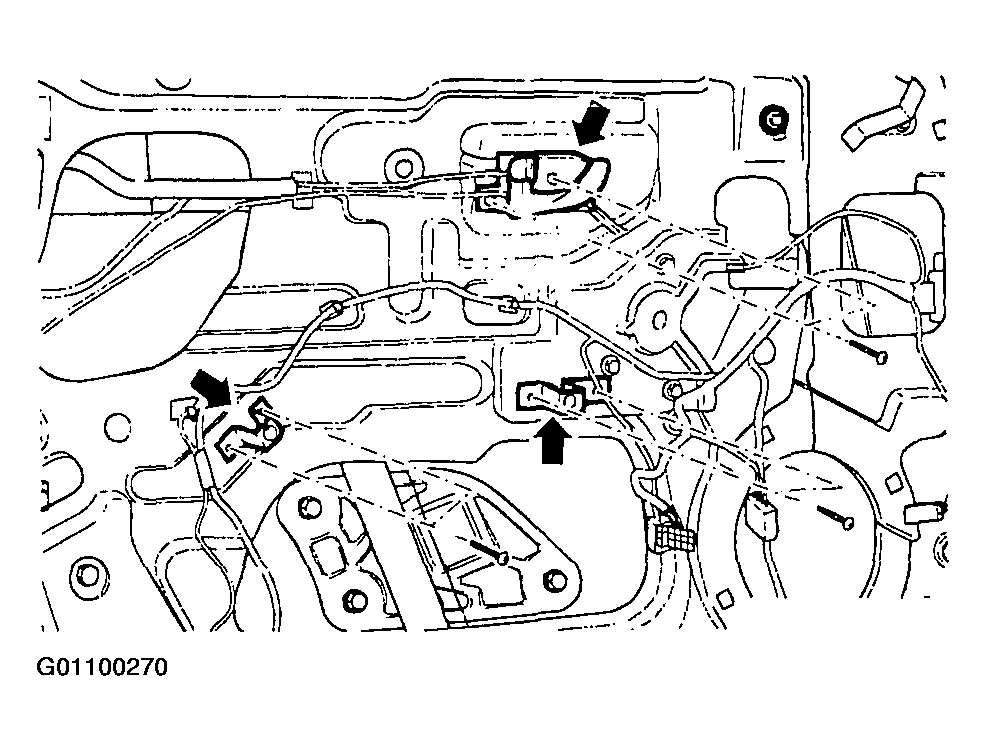

Remove the door grip handle mounting bracket and door inside handle.

Fig 4: Removing Door Grip Handle Mounting Bracket & Door Inside Handle
Courtesy of HYUNDAI MOTOR CO.
Remove the amp speaker and door trim seal.

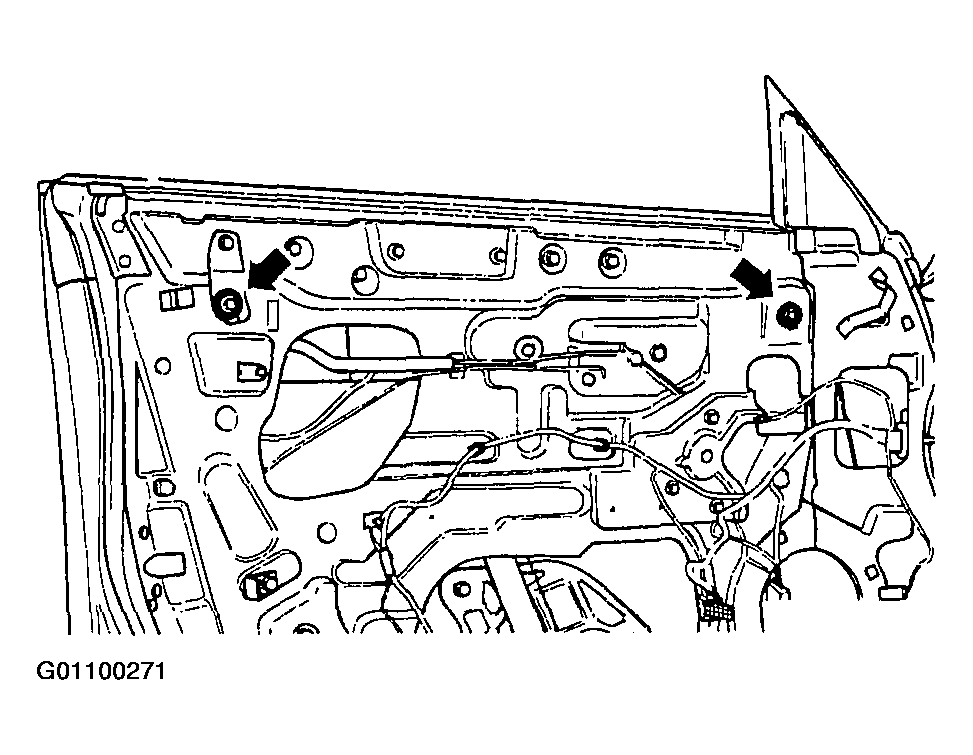

Remove the door glass stopper catch.

Fig 5: Removing Door Glass Stopper Catch
Courtesy of HYUNDAI MOTOR CO.

NOTE: Does not remove the door glass stopper if you don't want to change the door glass.

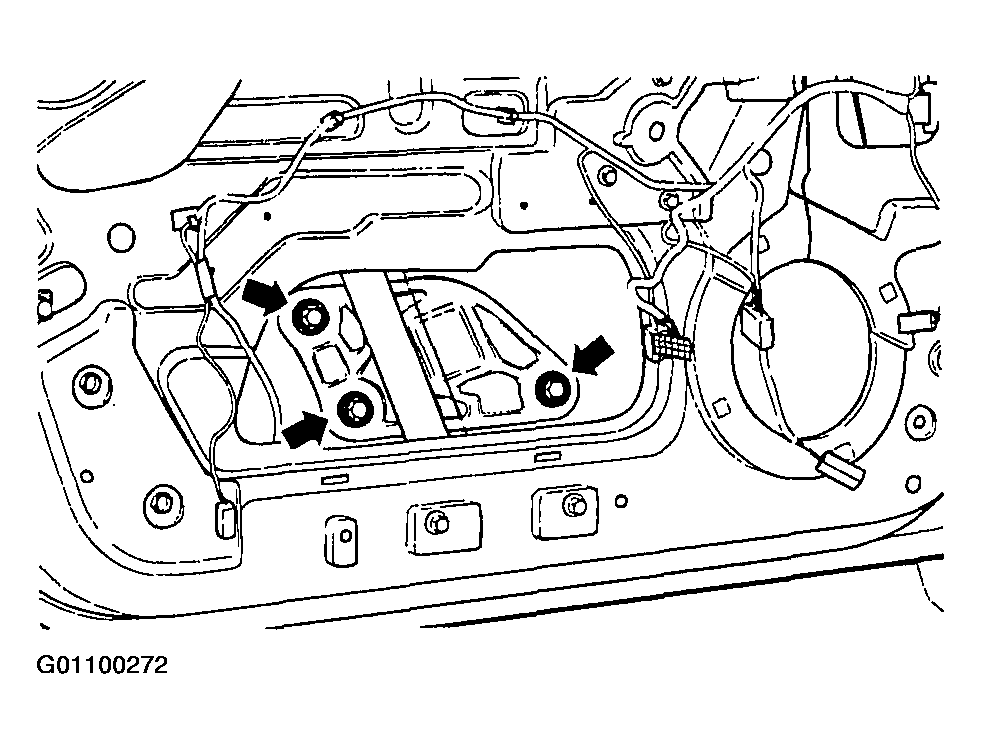

Loosen the carrier plate mounting bolts in the regulator channel and remove the door glass.

Fig 6: Removing Front Door Glass
Courtesy of HYUNDAI MOTOR CO.

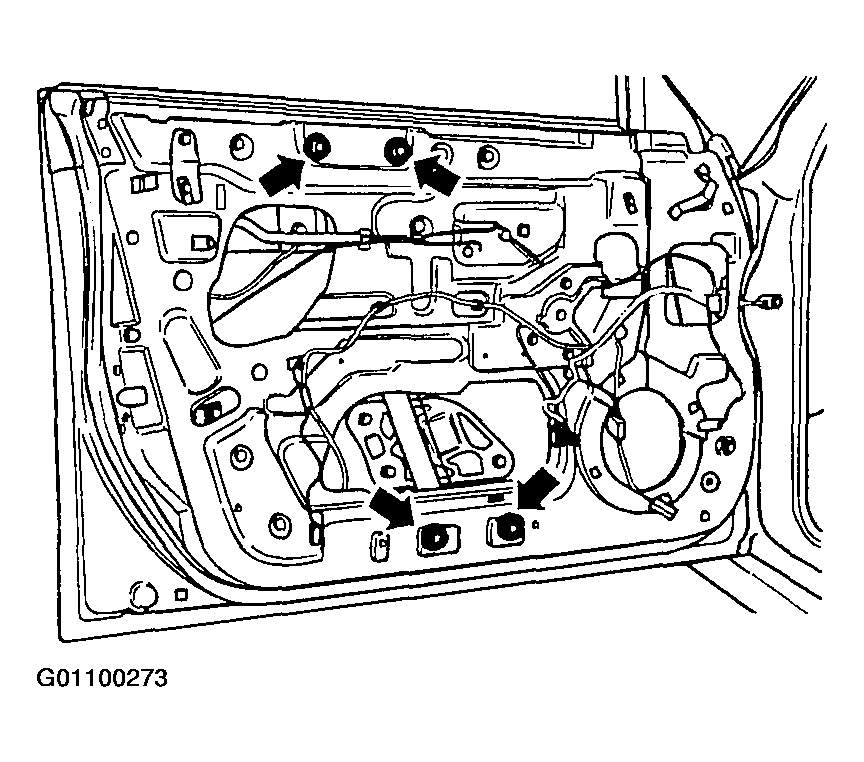

Remove the power window regulator after removing the mounting bolts.

Fig 7: Removing Power Window Regulator
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
CAUTION: When installing the door trim seal, butyl tape should not be placed over the door trim fastener mounting area.
