Inspection Procedure 10
Inspection Procedure 10

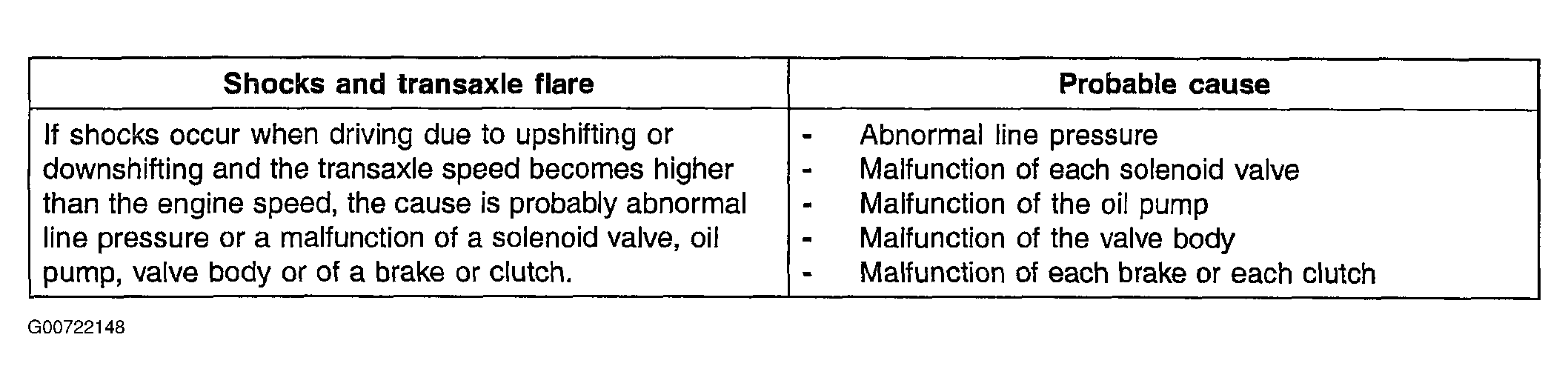

Fig 1: Inspection Procedure 10 (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

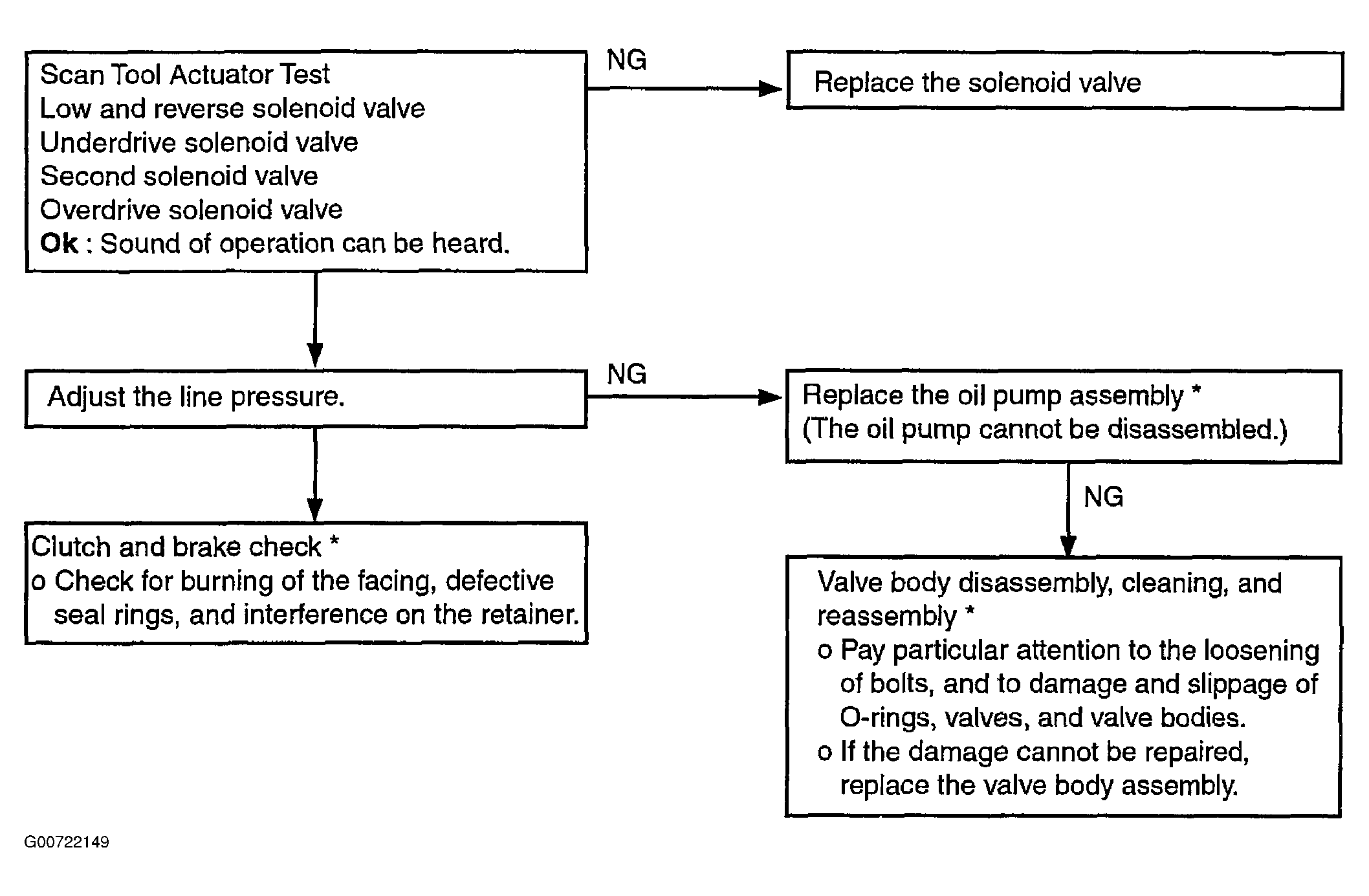

Fig 2: Inspection Procedure 10 (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
