Steering Column And Shaft: Components

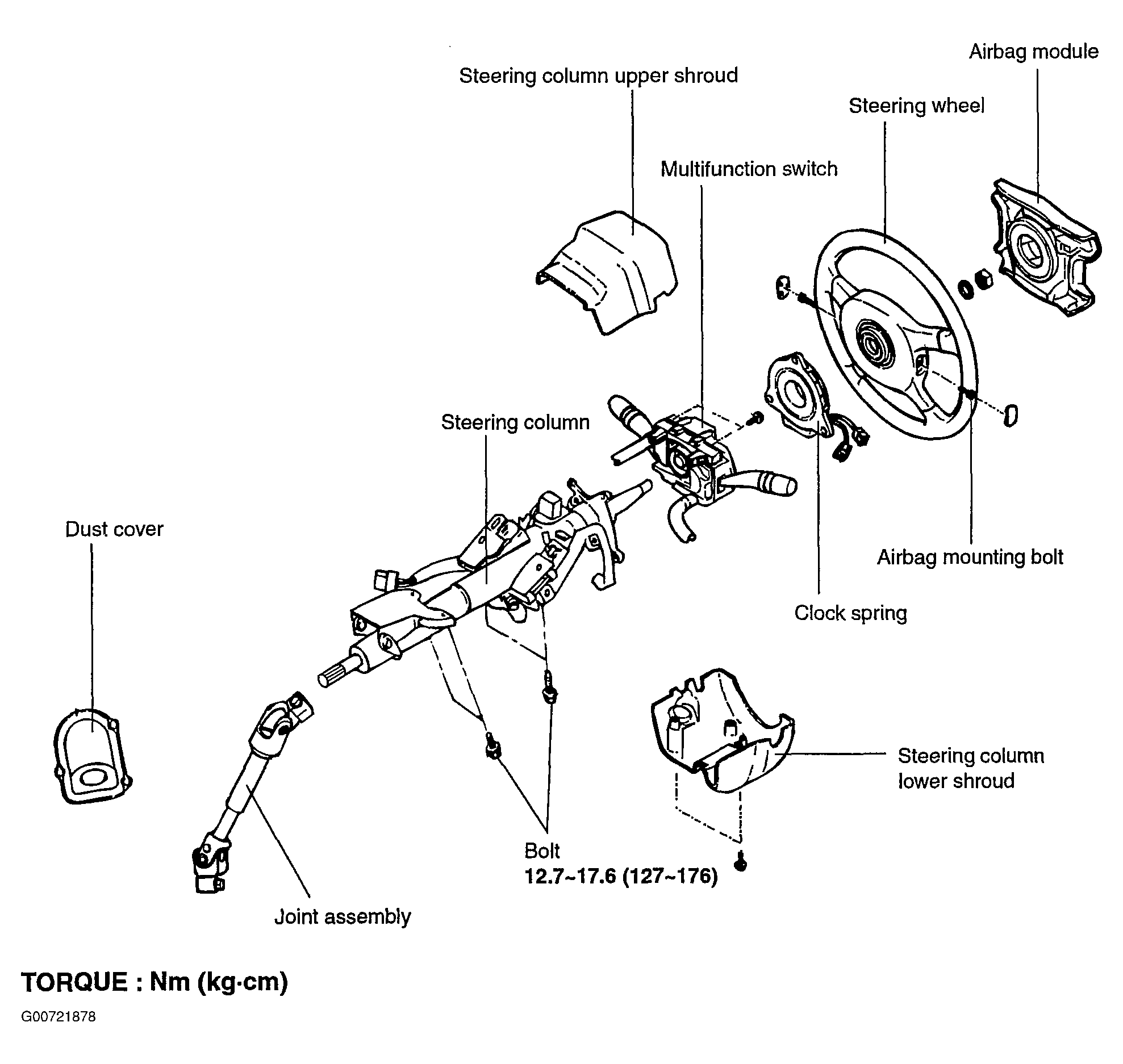

Fig 1: Identifying Steering Column & Shaft Components

G00721878

Courtesy of HYUNDAI MOTOR CO.
